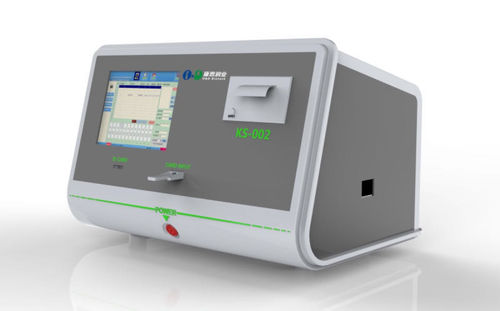

Automatic immunoassay analyzer KS-002

for clinical diagnosticfor immunofluorescence assaysblood

Advantages v Each channel has independent timing, detecting multiple items simultaneously without interference v Incubation function ensures 23-28 ℃ of testing temperature v Various sample types including whole blood, plasma, serum, urine and peripheral blood. Number of Channels 12 Product Name KS-002 Dry Fluorescent Immunoassay Analyzer Testing Mode Automatic testing: the instrument automatically completes test cartridge incubation, testing and discarding of waste cards Testing Speed up to 120 tests/hour (Testing speed depends on incubation time) CV CV ≤ 10% Screen 8" LCD screen. The instrument can be connected to a monitor by VGA interface. Software WINDOWS operating system; Result query and QC function are available. Calibration Information Reading ID card reader reads and saves the information of multiple batches of test items Barcode Scanning The instrument has a built-in barcode scanner to identify the barcode of the test cartridge and can be connected externally to a barcode scanner to scan patient information. Sample Type Whole blood, plasma, serum or other sample types (varies by test item, PCT, CRP, β-HCG can be used directly with peripheral blood) Printer Built-in thermal printer; The instrument can be connected to a common printer to print the test reports. Interface USB, VGA, NI and other interfaces Data Processing Data can be exported or uploaded to the LIS system Power AC 220V, 50Hz; Input power 250VA Packaging Size 600(L)x 465(W) x 470(H)mm Dimension 490(L)x 328(W) x 336(H)mm Net weight 16kg
