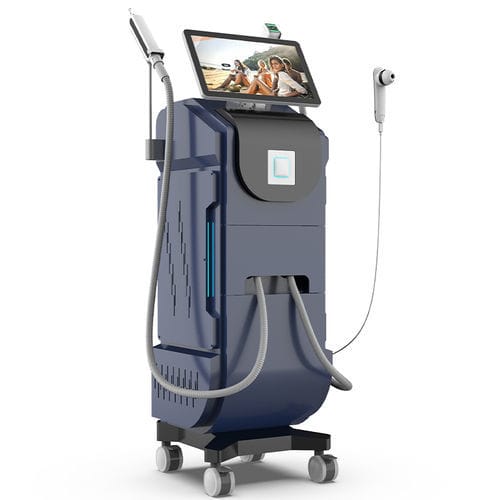

Dermatology laser Z810

hair removalskin rejuvenationpigmented lesion treatment

Key Benefits

• Combined 2-in-1 platform integrating a diode laser for long-term hair reduction and a picosecond laser for tattoo and pigment clearance plus skin rejuvenation.
• Large diode spot (15×26 mm) for efficient body coverage and an 8 mm facial tip for small or difficult areas.
• Triple cooling (air + water + fans) to reduce epidermal temperature, minimize patient discomfort and protect tissue during treatments.
• Picosecond handle compatible with all skin types and tattoo/pigment colors; adjustable spot size (1–10 mm) and multiple interchangeable probes for targeted procedures.
• 15.6-inch 4K Android touchscreen with multi-language UI (16 languages), customizable logo and remote-control capability for clinic workflow integration.

Solution and Implementation
The device provides an integrated aesthetic solution by combining diode and picosecond laser technologies in a single console. Clinics can perform permanent hair reduction using the diode module and tattoo/pigment removal or skin resurfacing using the picosecond module without switching platforms.

Principle of Function
The diode laser delivers wavelengths that heat and disable hair follicles to inhibit regrowth. The picosecond laser emits ultra-short, high-intensity pulses that fragment tattoo ink and pigment into microparticles for phagocytic clearance and can induce collagen remodeling to improve skin texture.

Application Industries and Segments
Intended for medical aesthetic and dermatology settings: dermatology clinics, medical aesthetic centers, specialized beauty institutes and med-spas offering hair removal, tattoo and pigment treatments and non-ablative skin rejuvenation.

Advantages and Features
Offers multifunction treatment capability (hair removal + tattoo/pigment removal + skin rejuvenation), a combination of large-spot efficiency and small-tip precision, robust cooling for patient comfort and device durability, high-shot-count picosecond handle with multi-probe options, and an intuitive 4K interface adaptable to clinic workflows.

Technical specifications

• Product name: 2 IN 1 hair removal + picosecond Machine
• Model: Z810
• Laser type: Diode Laser + Picosecond Laser
• Diode laser power (optional): 1200 W
• Diode shot count: 100,000,000 shots
• Picosecond laser power: 2500 W
• Picosecond shot count: 5,000,000 shots (handle)
• Diode spot size: 15 × 26 mm
• Diode pulse duration: 1–400 ms
• Diode frequency: 1–10 Hz
• Diode energy range: 1–150 J/cm²
• Picosecond wavelengths: 532 nm, 755 nm, 1064 nm, 1320 nm
• Picosecond spot size: 1–10 mm (adjustable)
• Picosecond energy (listed): 2000 mJ
• Picosecond probes: 4 probes (multi-probe configuration)
• Facial tip: 8 mm for small/hard-to-reach areas
• Screen: 15.6" 4K HD Android touchscreen
• Interface languages: 16 kinds (including English, Russian, German, etc.)
• Cooling system: Air + Water + Fans
• Crystal operating temperature range: -42 °C to -5 °C
• Handle flow rate: 5 L/min ±10%
• Cooling water temperature: 20–25 °C
• Input power: 4500 W
• Power requirement: AC 220 V / 110 V, 50–60 Hz
• Package size: 51 × 59 × 123 cm (L × W × H)
• Gross weight: 79 kg
