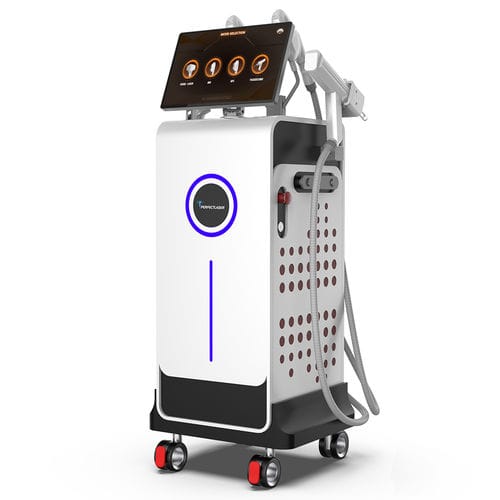

Dermatology laser Z350

hair removalskin rejuvenationvascular lesion treatment

Overview
Perfectlaser Z350 is a professional 4-in-1 laser therapy system combining Near Infrared, OPT, Diode and Picosecond technologies to address 20+ aesthetic indications non-invasively. Designed for clinic use with modular magnetic handpieces and a 15.6in 4K HD Android touchscreen for workflow control and preset protocols.

Functionality & Solutions

• Permanent hair reduction for all body areas and hair colors using Diode and OPT handles.
• Tattoo removal across ink colors and pigment correction (melasma, age spots) with Picosecond and OPT modes.
• Wrinkle reduction, skin tightening and collagen stimulation via Near Infrared energy (peak ~1300 nm).
• Acne management, pore reduction and overall skin rejuvenation options.

How It Works
The system combines photothermal mechanisms (Near Infrared / OPT / Diode) and photomechanical effects (Picosecond). Near Infrared heats the dermis to stimulate collagen remodeling; Picosecond delivers ultra-short pulses to fragment pigments and tattoo ink; OPT filters (430–640 nm) allow wavelength selection for vascular lesions, acne or hair removal.

Target Clients & Applications

• Medical spas and dermatology clinics: multi-service device for hair removal, facial rejuvenation and tattoo removal.
• Aesthetic centers: adaptable treatments across skin phototypes with adjustable energy and spot sizes.
• Wellness and resort clinics: non-surgical skin tightening and anti-aging programs.

Key Advantages

• Stable high-power output using U.S. Coherent laser bars and Taiwan MW power supply (4500W input).
• Modular flexibility with magnetic handpieces and multiple picosecond probes for varied spot sizes.
• Picosecond pulses reduce melanin damage risk and minimize post-inflammatory hyperpigmentation.
• Higher procedural efficiency—faster tattoo clearance and shorter treatment times versus older platforms.
• Global compatibility with multi-language OS and AC110V/220V operation.

Laser Machine Parameters (table-style)
LASER TYPE: Near Infrared + OPT + Diode laser + Picosecond laser
SCREEN: 15.6in 4K HD Android Touch Screen
PACKAGE SIZE: 53×60×140 cm
WEIGHT: 90 KG
COOLING SYSTEM: Air + Water + Fans (crystal temperature down to -42°C; cooling water temp 20–25°C)
INPUT POWER: 4500W
POWER REQUIREMENT: AC220V/110V 50~60Hz

OPT Handle (table-style)
FREQUENCY: 1~10Hz
SHOTS: 500,000
ENERGY: 1~50 J/cm²
PULSE: 3 P
WAVELENGTHS (OPT): 430 nm / 480 nm / 530 nm / 560 nm / 640 nm
REPLACEABLE SPOT: Fractional / Circle / Square

Picosecond Handle (table-style)
ENERGY: 2000 mJ
FREQUENCY: 1~10Hz
TREATMENT HEADS: 5 probes
WAVELENGTHS: 532 nm / 1064 nm / 1320 nm / 755 nm
SHOTS: 5 million

808 Diode Handle (table-style)
LASER BAR POWER: 1600W
PULSE WIDTH: 1-400 ms
ENERGY: 1~150 mJ/cm²
FREQUENCY: 1~10Hz
WAVELENGTH: 755 + 808 + 1064 nm
SHOTS: 100 million
SPOT SIZES: Facial tip / 16×16 mm / 16×22 mm / 16×36 mm

Near Infrared Handle (table-style)
WAVELENGTH: 900-1800 nm (peak ~1300 nm)
SHOT SIZE: 10×40 mm
ENERGY: 1~500 mJ/cm²

Technical specifications

• Laser types: Near Infrared + OPT + Diode + Picosecond
• Power input: 4500W (AC 110V/220V, 50–60Hz)
• Cooling: Air + Water + Fans; crystal temp -42°C; water temp 20–25°C
• Screen: 15.6in 4K HD Android touchscreen
• Handpieces: OPT (430–640 nm, 500K shots), Diode (808 nm, 100M shots), Picosecond (5 probes, 5M shots), Near Infrared (1300 nm peak)
• Pulse settings: Frequency 1–10 Hz; Energy 1–500 mJ/cm² (depending on handle)
• Dimensions & weight: 53 × 60 × 140 cm; 90 kg
• Durability: high shot lifespans (e.g., 100M shots for diode, 5M shots for picosecond)
