Skin rejuvenation laser C5

pigmented lesion treatmenttattoo removalsolid-state

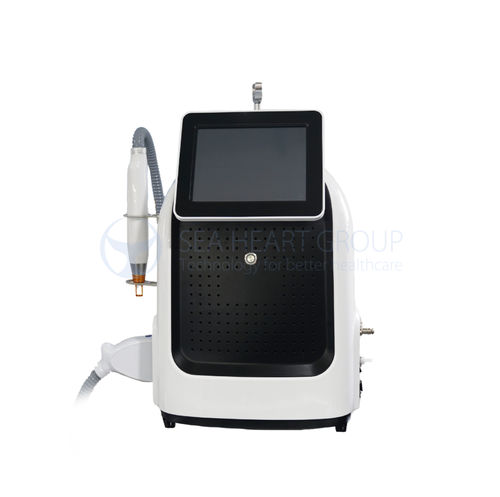

Overview The C5 portable Nd:YAG laser is a Q-switched device designed for professional tattoo removal and pigment treatments. Its compact form factor and adjustable settings make it suitable for clinics, medical aesthetic practices and mobile services.

Principle The device emits ultra-short, high-energy pulses at 1064 nm and 532 nm. These pulses fragment tattoo and skin pigments into micro-particles that are eliminated via the lymphatic system. Q-switching concentrates energy into brief pulses to target pigment while limiting thermal damage to adjacent skin.

Functions

• Tattoo removal – effective on black, blue, red, green and multi-color tattoos.
• Pigmentation treatment – treatment of freckles, age spots, sun spots and melasma.
• Skin rejuvenation – stimulates collagen remodelling for improved tone and texture.
• Nevus and birthmark lightening – assists in fading benign pigmented lesions.
• Carbon peel – reduces pore appearance and evens skin tone.

Advantages

• Portable and space-saving – compact design suitable for small treatment rooms and mobile use.
• High precision – selectable wavelengths (1064 nm, 532 nm) and adjustable energy/Hz settings for tailored protocols.
• Fast recovery – minimal downtime for most patients.
• Patient comfort – integrated cooling reduces procedural discomfort.
• Stable output – consistent laser performance for reproducible results.
• Cost-efficient – low maintenance requirements and high clinic ROI.

Technical Parameters

• Laser type: Solid-state Q-Switched Nd:YAG
• Wavelengths: 1064 nm and 532 nm
• Spot size: 1–8 mm
• Pulse width: 3.5 ns
• Maximum energy: 2000 mJ
• YAG bar size: Ø 7 mm
• Repetition rate: 1–10 Hz (adjustable)
• Xenon lamp size: 65 mm
• Operation interface: 8" colour touch screen
• Dimensions (L×W×H): 40 × 30 × 65 cm
• Net weight: 12.5 kg
