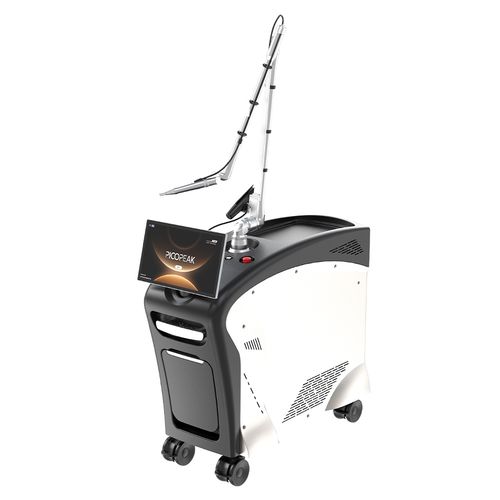

Dermatology laser PICOPEAK® PTP

hair removalskin rejuvenationpigmented lesion treatment

Overview
The Android-operated PICOPEAK® PTP picosecond laser system delivers a Flat-Top energy profile across four wavelengths (1064 / 532 / 585 / 650 nm) with durable, low-loss power. A 15.6-inch touchscreen and ZOOM adjustable handpiece (2–10 mm) provide precise control for tattoo removal, epidermal and dermal pigment clearance, and optional fractional skin rejuvenation.

Technology & How It Works
The proprietary PICOPEAK® PTP (Peak Through Peak) picosecond laser emits ultra-short pulses that create a photo-mechanical effect to fragment ink particles into microscopic debris cleared naturally by lymphatic processes. The Android environment automates parameter selection (skin type, ink color) and offers touchscreen presets for repeatable clinical protocols.

Clinical Applications

• Removal of professional, amateur, traumatic and cosmetic tattoos across a wide color spectrum by combining wavelengths and handpiece options.
• Clearance of epidermal and dermal pigmentations: melasma, solar lentigines, café-au-lait spots and freckles using 1064 nm and 532 nm.
• Optional fractional modes for collagen remodeling: acne and surgical scar improvement, pore reduction and skin texture enhancement.
• Optional hair reduction capability with dedicated handpiece for various skin types.

Handpieces (listed with role)

• ZOOM Handpiece — Adjustable 2–10 mm (1 mm step). Epidermal & dermal pigmentation treatment. (Standard)
• MLA Handpiece — Micro Lens Array for fractional rejuvenation. (Optional)
• 1064 nm Fractional HP — Deep fractional resurfacing for scars & collagen stimulation. (Optional)
• 532 nm Fractional HP — Superficial fractional renewal for tone & texture. (Optional)
• 585 Dye Handpiece — Targets sky-blue & teal inks with precision. (Optional)
• 650 Dye Handpiece — Engineered for resistant green pigments. (Optional)
• Hair Remove HP — Efficient hair reduction across skin types. (Optional)

Key Features

• Multi-wavelength engine: standard 1064 nm and 532 nm; optional 585 nm and 650 nm probes to cover a broad ink color range.
• Flat-Top energy profile for uniform energy distribution across the spot, reducing hot/cold zones.
• Durable power architecture with closed-loop water cooling and optimized handpiece connections to minimize energy loss.
• 15.6-inch responsive Android touchscreen with built-in presets, training materials and clinic workflow support.
• ZOOM adjustable handpiece (2–10 mm) for accurate spot-size control.

Advantages

• Enhanced pigment clearance with fewer sessions due to PTP picosecond pulse delivery.
• Improved safety profile for darker skin tones through Flat-Top energy and 1064 nm delivery to help reduce hypopigmentation risk.
• Stable clinic-grade energy output with minimal long-term decay from optimized optics and robust power design.
• Android platform enables software updates, protocol distribution and an intuitive UI that shortens operator learning time.

Technical Specifications

• Laser Type: PICOPEAK® PTP Picosecond Laser
• Wavelengths: 1064 nm / 532 nm / 585 nm (optional) / 650 nm (optional)
• Energy (Q-Switch): 400–1500 mJ
• Energy (LP): 30/50 J
• Pulse Width (Q-Switch): 6 ns
• Pulse Width (LP): 100 ms
• Repetition Rate: 1–15 Hz
• Dimensions (W x D x H): 441 x 1012 x 834 mm; (Including Arm H: 1678 mm)
• Weight: 87.5 kg
• Weight Including Accessories: 96 kg
• Main Voltage: 220/230 V, 50/60 Hz
• Maximum Power Consumption: 3000 VA
• Main Current: 12 A
• Safety Class: Class IV laser
