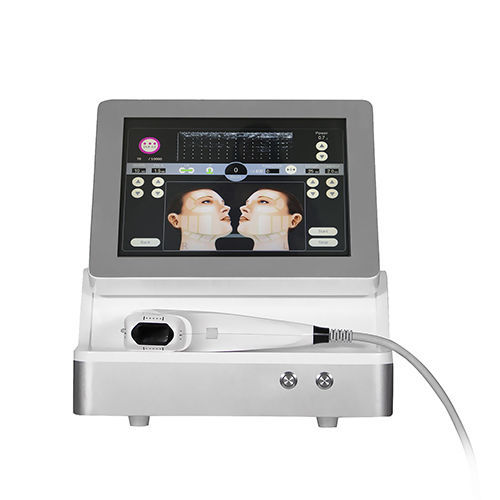

HIFU body contouring unit VI10-3D

Product Overview

Brief
Portable device: Portable
Type: HIFU Machine
Theory: High Intensity Focused Ultrasound
Application: Salon, Clinic, Home use (professional supervision recommended)
Product Name: 3D HIFU Body Contouring And Skin Tightening Machine (9D HIFU, model VI10-3D)
Energy type: High Intensity Focused Ultrasound (HIFU)

Theory
High Intensity Focused Ultrasound (HIFU) delivers focused thermal energy into the dermis and subcutaneous tissue to stimulate collagen remodeling and tissue contraction. The method targets defined depths without damaging the epidermis, enabling non-invasive lifting and tightening for face and body with minimal downtime.

Functions

• Reduce wrinkles around forehead, eyes and mouth
• Lift and tighten cheek and jawline contours
• Improve skin elasticity and body contour definition
• Reduce marionette lines and soften nasolabial folds
• Tighten neck skin and elevate brow line
• Improve skin tone and texture
• Compatible with adjunct treatments (e.g., hyaluronic acid, collagen) for combined protocols

Feature

• Multiple treatment heads: 1.5 mm, 3.0 mm, 4.5 mm (DS7 series cartridges) for precise focal depth delivery
• Energy bypasses the epidermis to focus on target tissue with no surface ablation
• Short treatment time: approximately 30–40 minutes for a full face session
• Immediate tightening effect with results that can persist (reported up to 36–60 months depending on patient factors)
• Components: >80% imported accessories (core controller from Germany, power supply from USA); adjustable power and short pulse-width for controlled energy delivery

Details
Non-invasive procedure using focused ultrasound to create microthermal zones in subcutaneous tissue, stimulating collagen production and progressive remodeling. Suitable for face and larger body areas where contouring and firming are required.

Parameter Table
Laser type: High Intensity Focused Ultrasound
Frequency: 7 MHz, 10 MHz
Output: Pulse digital mode
Power: 0.1 - 3.0 (adjustable, 0.1 step)
Treatment Head: DS7-1.5, DS7-3.0, DS7-4.5
Shot/instance range: 0.1 - 4 mm (1 mm step)
Focal zone length: 5.0 - 25 mm (1 mm step)
Gross weight: ~30 kg
Input voltage: 110/220V ±10%, 50/60 Hz

Characteristics / spécifications techniques

• Model: VI10-3D
• Brand: VCA LASER
• Product name: 3D HIFU Body Contouring And Skin Tightening Machine (9D HIFU Machine)
• Technology: High Intensity Focused Ultrasound (HIFU)
• Applications: Face and body lifting, skin tightening, wrinkle reduction, contour shaping
• Treatment heads: 1.5 mm, 3.0 mm, 4.5 mm (DS7 series)
• Frequency options: 7 MHz, 10 MHz
• Power range: 0.1–3.0 (0.1 step)
• Shot/instance range: 0.1–4 mm (1 mm step)
• Focal zone length: 5–25 mm (1 mm step)
• Pulse mode: Digital pulse mode
• Gross weight: ~30 kg
• Input voltage: 110/220V ±10%, supports 50/60 Hz
• Treatment time: ~30–40 minutes per face session
• Expected duration of effect: up to 36–60 months (varies by patient)
• Included documentation: user manual, maintenance manual, training guide (as provided by manufacturer)
