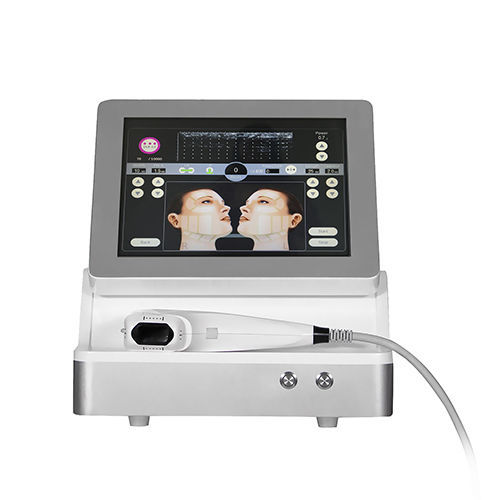

HIFU body contouring unit VI10

Product Brief

• Model: VI10
• Brand: VCA LASER
• Warranty: 3 Years
• Cartridge 1: 4.0MHz, 3.0mm
• Cartridge 2: 7.0-5MHz, 4.5mm
• Application: Salon, Hospital
• Treatment: Face Lifting, Body Slimming
• After-Sales Service: Online Support, Video Technical Support

Principle
Ultrasonic focusing reaches the SMAS layer with specific high-energy focused ultrasound, improving SMAS suspension to address facial sagging and laxity. Energy is accurately delivered to the SMAS at 4.5mm depth to shape and lift muscle, and to the collagen layer at 3.0mm depth to stimulate collagen remodeling and regeneration. The energy passes through the epidermis, reducing epidermal injury risk while enabling rapid lifting and wrinkle smoothing.

Functions

• Remove wrinkles around forehead, eyes, mouth
• Lift and tighten cheek skin
• Improve skin elasticity and contour shaping
• Enhance jawline and reduce marionette lines
• Tighten forehead tissue and lift eyebrows
• Improve skin complexion, making skin more refined and brighter
• Complementary to injectable treatments (hyaluronic acid, collagen)
• Reduce neck wrinkles and help prevent neck aging

3D Technology
The 3D system supports multi-line shots adjustable from 1 to 11 lines and enables multi-dimensional treatment regions (facial wrinkles, chest, body contouring). Parameters adjustable include distance between points, row spacing, energy per point and line length for precise, flexible treatments.

Parameter Summary

• Type: 3D High Intensity Focused Ultrasound
• Working frequency: 4MHz
• Max power: 100VA
• Treatment heads: 1.5mm, 3.0mm, 4.5mm, 6.0mm, 8.0mm, 10.0mm, 13.0mm, 16.0mm
• Width: 0~10mm (1mm/step)
• Length: 5~25mm (1mm/step)
• Clearance: 1.0~5.0mm (0.1mm/step)
• Pitch: 1.0~5.0mm (0.1mm/step)
• Energy per point: 0.2~2J (0.1J/step)
• Fuse: 6A
• Gross weight: 10KG
• Operation voltage: 110V-240V
• Screen size: 15 Inch

Technical specifications

• Model: VI10
• Brand: VCA LASER
• Warranty: 3 Years
• Cartridge 1: 4.0MHz, 3.0mm
• Cartridge 2: 7.0-5MHz, 4.5mm
• Application: Salon, Hospital
• Treatment: Face Lifting, Body Slimming
• After-Sales Service: Online Support, Video Technical Support
• Type: 3D High Intensity Focused Ultrasound
• Working frequency: 4MHz
• Max power: 100VA
• Treatment heads available: 1.5mm, 3.0mm, 4.5mm, 6.0mm, 8.0mm, 10.0mm, 13.0mm, 16.0mm
• Width: 0~10mm (1mm/step)
• Length: 5~25mm (1mm/step)
• Clearance: 1.0~5.0mm (0.1mm/step)
• Pitch: 1.0~5.0mm (0.1mm/step)
• Energy per point: 0.2~2J (0.1J/step)
• Fuse: 6A
• Gross weight: 10KG
• Operation voltage: 110V-240V
• Screen size: 15 Inch
