Skin rejuvenation laser VN19

surgicaltattoo removalNd:YAG

Product Name

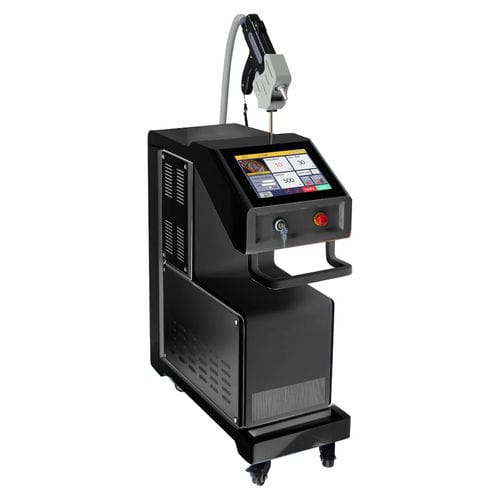

450ps Picosecond Nd:YAG Laser Tattoo Removal Machine VN19 (VCA LASER)

Overview
The Nd:YAG picosecond laser delivers ultra-short pulses (on the order of one trillionth of a second) that generate high-pressure impact on melanin, fragmenting pigment into fine particles that the body can absorb and eliminate. The picosecond system provides a fast, non-surgical and non-invasive skin treatment suitable for chest, décolleté, face, hands, legs and other body areas.

Key Benefits

• Selective fragmentation of pigment into very small particles for easier elimination with minimal damage to surrounding tissue
• Honeycomb-focused technology produces controlled vacuolization to protect the epidermis during treatment
• Higher pigment removal rate compared with traditional Q-switched lasers; reduced postoperative swelling and pigment precipitation
• Faster pigment clearance, often reducing sessions from 5–10 to about 2–4 in many cases
• Narrow, well-targeted beam reduces bleeding; laser effect can seal small vessels
• Lower pain due to ultra-short pulses and thermal coagulation; topical anesthetic optional
• Clearer view during treatment and minimal intraoperative bleeding
• Rapid procedures enabled by concentrated energy and ultra-short pulses
• Minimal scarring risk owing to selective absorption and limited normal tissue injury
• Lower recurrence rate because surrounding normal tissue is largely preserved

Treatment Capabilities
Effective for tattoo and pigmented lesion removal across multiple colors. Typical wavelengths: 1064 nm for dark/blue/gray pigments; 532 nm for warm tones such as red, brown and purple; 1320 nm for skin whitening, rejuvenation, pore tightening and deep cleansing; 755 nm for speckled pigmentation and spot removal.

STANDARD CONFIGURATION
Laser Type: Q-Switched Nd:YAG laser
Heads: 1064 nm, 532 nm, 1320 nm (black doll) & 755 nm (honeycomb mirror option)
Spot area: φ6 mm
Energy: 500–1000 mJ
Frequency: 1–10 Hz
Laser Pulse Width: 2–8 ns
Indicator: 630 nm infrared aiming beam
Cooling: water cooling & air cooling
Output Power: 2000 W
Display Interface: 10.4/15 inch color touch screen
Power Supply: 220 V a.c / 110 V a.c ±10% 50 Hz/60 Hz

Usage Notes
Treatments typically require fewer sessions than traditional Q-switched lasers. Topical anesthetic may be applied based on patient preference. Suitable for a range of skin types (I–V) and multiple tattoo/pigment colors.

Technical specifications

• Model: VN19
• Brand: VCA LASER
• Product type: Tattoo Removal
• Theory: Laser (Picosecond / Q-Switched Nd:YAG)
• Application: Salon, Clinic
• Portability: Non Portable
• Item name: Skin Rejuvenation Picosecond Laser
• Wavelengths / Treatment heads: 1064 nm, 532 nm, 1320 nm, 755 nm (honeycomb mirror option)
• Spot area: φ6 mm
• Energy range: 500–1000 mJ
• Frequency: 1–10 Hz
• Laser pulse width: 2–8 ns
• Indicator: 630 nm infrared aiming beam
• Cooling: Water cooling & air cooling
• Output power: 2000 W
• Display: 10.4 / 15 inch color touch screen
• Power supply: 220 V a.c / 110 V a.c ±10% 50 Hz/60 Hz
