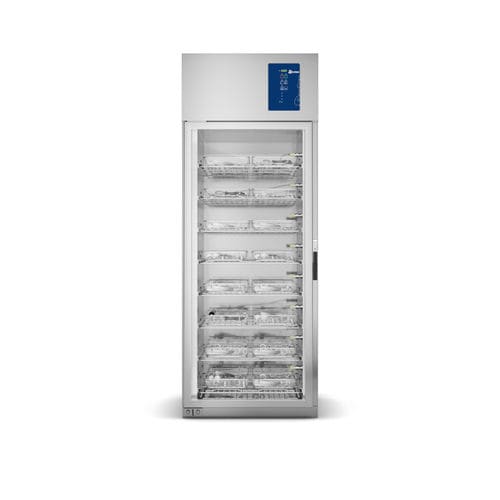

Transfer cabinet ID 300

warmingreprocessingdrying

Product overview

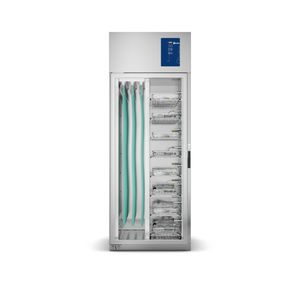

ID 300 is an instrument drying cabinet designed for fast drying and controlled storage of instruments, equipment and related items. HEPA H14 filtered warm airflow ensures uniform temperature distribution and a controlled environment. Available in single-door or double-door pass-through interlocked configurations. Full glass door enables rapid visual inspection. LED display control panel allows setting of working temperature and drying duration.

Applications / benefits

• Separate drying of anaesthesia and instrument accessories increases throughput of washer-disinfectors; cabinets can accept load volumes equivalent to more than two washer-disinfectors depending on configuration.
• Pass-through double-door versions support barrier installation to prevent cross-contamination between dirty and clean areas.

Features

• Capacity: configurable for up to 16 DIN 1/1 trays on 8 shelves or up to 18 trays on 9 removable shelves.
• Hygienic construction: AISI 304 external frame, panels, shelves and shelf guides for long-term reliability and cleanliness.
• Drying system: HEPA H14 filtered warm airflow for uniform drying and temperature distribution.
• Door options: full glass door; HST tempered double glass hinged door reversible for right or left opening; single or double interlocked (pass-through) configurations.
• Control: LED display control panel for temperature and duration settings.

Certifications
Designed to comply with EN ISO 14971, EN 61010-1/2-010, EN IEC 61326-1, EN 62366 and EN 62304. Classified as a CE medical device under Regulation 2017/745/EU (MDR). Brand: SteelcoBelimed.

Dimensions

• Single-door version — Overall (W x D x H): 710 x 787 x 1900 mm
• Double-door version — Overall (W x D x H): 710 x 835 x 1900 mm

Technical specifications

• Model: ID 300
• Capacity: up to 16 DIN 1/1 trays on 8 shelves (standard) or up to 18 trays on 9 removable shelves (alternative)
• Filtration: HEPA H14 filtered airflow
• Airflow / heating: warm filtered airflow for uniform distribution
• Materials: AISI 304 for external frame, panels, shelves and shelf guides
• Doors: full glass door; HST tempered double glass hinged door reversible; single or double interlocked/pass-through options
• Control panel: LED display for temperature and duration settings
• Installation: double-door pass-through version suitable for barrier installation
• Compliance: EN ISO 14971; EN 61010-1/2-010; EN IEC 61326-1; EN 62366; EN 62304; CE (MDR 2017/745/EU)
