Reprocessing cabinet AD 400

dryingfor endoscopeslaboratory

Overview

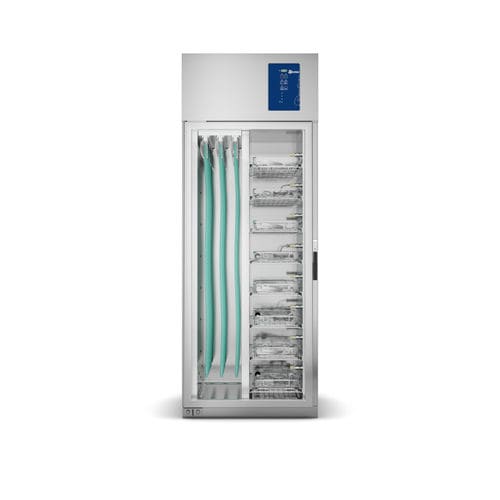

AD 400 is a mixed‑solution drying cabinet designed for rapid drying of instruments, anaesthesia bags and hanging hoses. Total capacity: up to 8 DIN 1/1 trays and up to 36 anaesthesia hose connections. HEPA H14 filtered warm airflow provides controlled storage conditions and effective drying. Standard equipment includes eight stainless steel half‑size removable shelves on height‑adjustable rails and an LED display control panel for temperature and drying time settings.

Design and Operation

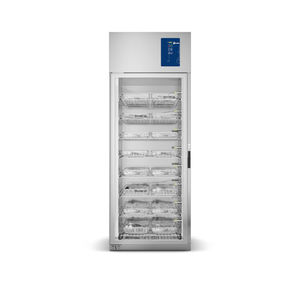

Available as single‑door or double interlocked pass‑through versions. The cabinet can be fitted with a full glass door for quick visual inspection. The LED control panel allows straightforward setting of working temperature and drying duration. The unit delivers warm, HEPA H14‑filtered airflow to ensure even temperature distribution and consistent drying performance.

Key Benefits

• High capacity: accepts up to 8 DIN 1/1 trays and up to 36 anaesthesia hose connections (3 rails with 6 removable holders each).
• Hygienic construction: AISI 304 stainless steel external frame, panels, shelves and shelf guides for easy cleaning and long service life.
• Drying efficiency: HEPA H14 filtered warm airflow for uniform temperature distribution and reduced drying times.
• Flexible configurations: single door or double interlocked pass‑through; HST tempered double‑glass hinged door, reversible for right or left opening.
• Barrier compatibility: double‑door pass‑through versions suitable for barrier installations to reduce cross‑contamination between dirty and clean areas.

Certifications
Designed and manufactured in compliance with EN ISO 14971, EN 61010‑1/EN 61010‑2‑010, EN IEC 61326‑1, EN 62366 and EN 62304. Classified as CE medical device (Regulation 2017/745/EU, MDR).

Dimensions
Single door version
Overall dimensions (WxDxH): 710 x 787 x 1,900 mm
27.95” x 30.90” x 74.80”

Double door version
Overall dimensions (WxDxH): 710 x 835 x 1,900 mm
27.95” x 32.87” x 74.80”

Technical specifications

• Model: AD 400
• Capacity: up to 8 DIN 1/1 trays
• Anaesthesia hose connections: up to 36 (3 rails with 6 removable holders each)
• Shelves: eight stainless steel half‑size removable shelves on height‑adjustable rails (standard)
• Air filtration: HEPA H14 filtered warm airflow
• Temperature distribution: warm airflow with even distribution
• Control: LED display control panel for setting working temperature and drying duration
• Construction material: AISI 304 stainless steel for external frame, panels, shelves and shelf guides
• Door: HST tempered double‑glass hinged door (reversible, right or left opening)
• Versions: single door or double interlocked pass‑through doors for barrier installations
• Application: dedicated drying of instruments, anaesthesia bags and hanging hoses to increase throughput in CSSD and sterile reprocessing areas
