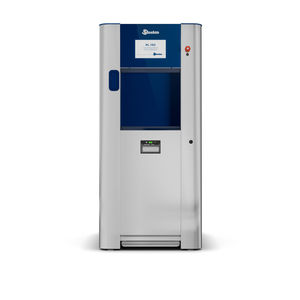

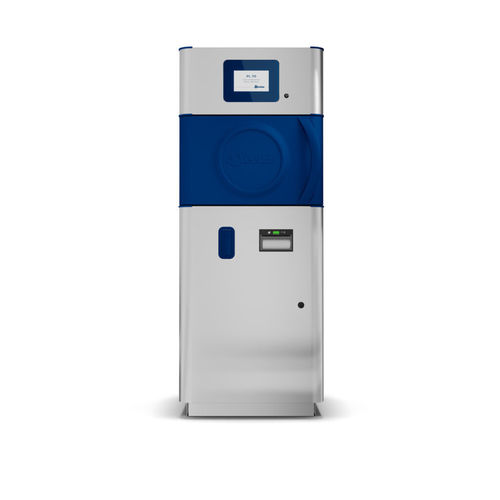

Surgery sterilizer PL 70 series

for microsurgeryfor endoscopyfor sterilization services

Overview
PL 70 is a low-temperature sterilization system for moist and heat-sensitive medical devices, based on vaporized hydrogen peroxide (H2O2). Chamber capacity: up to 84 litres / 2.88 cu ft. Designed for terminal sterilization of moist and heat-sensitive instruments, including surgical instruments in metal, metal alloys, light non-metallic alloys, robotic and micro-surgery systems. Compatible with a wide range of materials including stainless steel, silver, gold, platinum, tungsten, ceramics, plastics and 3D-printed resins.

Key capabilities

• Low-temperature vaporized H2O2 sterilization ensuring instrument protection and low energy consumption
• Suitable for instruments with lumens: maximum length up to 2200 mm (86.62") and minimum diameter down to 0.5 mm (0.02")
• Available as single or double manual hinged door; flexible load capacity configurations
• Ergonomic loading/unloading height: 1020 mm (40.17")
• PLC digital microprocessor control with 7" colour touch-screen HMI and integrated thermal printer for cycle data

High-performance work cycles (factory programmed and validated)

• Fast — dedicated to non-lumened instruments with and without articulations
• Flex — for flexible endoscopes, including Da Vinci® instruments
• Standard — for mixed loads: flexible, rigid, and semi-rigid lumened and non-lumened instruments
• Intensive — for mixed loads with more challenging dimensions
• Superfast — ultra-fast cycle for reduced loads (available on request)

Features and safety

• RFID-identified single-use cartridge with poka-yoke design: prevents reuse, incorrect refilling or use after expiry; provides batch, expiry and sterilant quantity information
• Barcode or RFID recognition option for operator and load identification
• Dedicated humidity check to control humidity and remove excess moisture
• Redundant sensors to monitor chamber pressure and temperature in real time
• External plasma generator system to improve instrument and environmental protection
• Triple safety system to reduce H2O2 emissions to nearly zero (environment care)
• Designed to use a low total H2O2 dose to protect instruments and extend service life

Process monitoring & traceability
Comprehensive assortment of chemical and biological indicators (including rapid-read solutions) and rapid-read incubator with traceability software. Integrated thermal printer and compatibility with digital traceability solutions for automatic recording of cycle and indicator results.

Certifications
Designed to comply with EN ISO 14937 (performance), EN ISO 14971, EN 61010-1/2-040, EN IEC 61326-1, EN 62366-1 (safety) and EN 62304 (software design). Classified CE0051 legacy medical devices (Directive 93/42/EEC, MDD).

Dimensions
Single Door Version:
Overall dimensions W x D x H: 642 x 920 x 1630 mm — 25.28" x 36.22" x 64.17"
Chamber volume: ~82 lt / 2.88 cu ft

Double Door Version:
Overall dimensions W x H x D: 642 x 990 x 1630 mm — 25.28" x 38.97" x 64.17"
Chamber volume: ~84 lt / 3 cu ft

Accessories and loading

• Semi-extractable shelves, baskets and inserts for loading flexibility
• Range of accessories to guarantee diffusion and penetration of H2O2 vapor

Technical specifications

• Model / Series: PL 70
• Technology: Low-temperature vaporized hydrogen peroxide (H2O2) sterilization (SteelcoPro PL)
• Chamber capacity: ~82–84 litres (single/double door)
• Maximum lumen length: up to 2200 mm (86.62")
• Minimum lumen diameter: 0.5 mm (0.02")
• Loading/unloading ergonomic height: 1020 mm (40.17")
• Control: PLC microprocessor with 7" colour touch-screen HMI
• Doors: single or double manual hinged door
• Cartridge: single-use RFID-identified sterilant cartridge (poka-yoke)
• Traceability: integrated thermal printer and digital traceability compatibility
• Factory cycles: Fast, Flex, Standard, Intensive, Superfast (on request)
• Materials compatibility: stainless steel, precious metals, tungsten, ceramics, plastics, 3D-printed resins
• Standards: EN ISO 14937, EN ISO 14971, EN 61010-1/2-040, EN IEC 61326-1, EN 62366-1, EN 62304; CE0051 (MDD)
