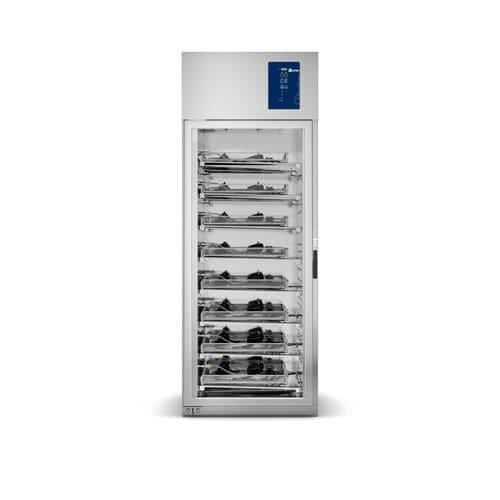

Reprocessing cabinet ED 100 series

keydryingfiltering

Overview
ED 100 is a drying cabinet for horizontal storage of flexible endoscopes. It provides controlled drying and aseptic storage to protect endoscopes from contamination before reuse and to keep them microbiologically safe and ready for use.

Operation
ED 100 dries and stores endoscopes by blowing filtered air through instrument channels and across external surfaces. Endoscopes connect to the drying circuit via specific CPC connectors. Versions are available with single or double interlocked doors with key locks. Standard supply includes eight net baskets and a lower drip tray; capacity up to 9 endoscopes available as an option.

Features

• Flexibility: Horizontal storage for up to 8 endoscopes in net baskets; optional capacity increase to 9 endoscopes. Standard supply: eight net baskets and dedicated connections.
• Optimal drying: Dedicated filtered-air drying circuit ensuring homogeneous heat distribution inside the storage chamber; HEPA H14 filtration for maximal safety.
• Configurable doors: HST tempered double-glass hinged doors; selectable right- or left-hand opening; available as single or double interlocked doors with key locks.

Microbiological integrity
Microorganisms can reach unsafe levels within hours. The ED range protects reprocessed endoscopes by thorough drying and maintains microbiological integrity up to 720 hours. Performance independently validated.

Certifications
Designed to meet EN 16442 (performance) and applicable safety and software standards: EN ISO 14971, EN 61010-1/2-010, EN IEC 61326-1, EN 62366 and EN 62304. Classified as CE medical devices under Regulation (EU) 2017/745 (MDR).

Dimensions
Single door — Overall dimensions (WxDxH): 712 x 786 x 1905 mm
Double door — Overall dimensions (WxDxH): 712 x 837 x 1905 mm

Technical specifications

• Model: ED 100
• Brand: SteelcoBelimed
• Storage type: Horizontal storage for flexible endoscopes
• Capacity: Up to 8 endoscopes in net baskets (standard); optional up to 9
• Drying method: Filtered air blown through instrument channels and on external surfaces; homogeneous heat distribution
• Connections: Specific CPC connectors for endoscopes
• Filtration: HEPA H14 filter
• Doors: Single or double interlocked doors with key locks; HST tempered double-glass hinged doors configurable for right or left opening
• Accessories included: Eight net baskets and dedicated connections; lower drip tray
• Microbiological performance: Maintains microbiological integrity up to 720 hours (independently validated)
• Standards / Compliance: EN 16442, EN ISO 14971, EN 61010-1/2-010, EN IEC 61326-1, EN 62366, EN 62304; CE medical device (MDR 2017/745)
• Overall dimensions (WxDxH): Single door 712 x 786 x 1905 mm; Double door 712 x 837 x 1905 mm
