Reprocessing cabinet ED 150 series

keydryingfiltering

Overview The ED 150 Series drying cabinets provide controlled drying and aseptic vertical storage for flexible endoscopes, protecting reprocessed devices from contamination and keeping them microbiologically safe and ready for clinical use.

Functionality The system dries and stores endoscopes by blowing HEPA-filtered air through the channels and across external surfaces. Endoscopes connect to the drying circuit via specific CPC connectors. Units are available with single or double interlocked doors and key lock. Storage is vertical on three extractable drawers enabling up to 9 endoscopes per cabinet.

Microbiological Integrity The ED 150 Series is validated to maintain microbiological integrity of reprocessed endoscopes for up to 720 hours, reducing contamination risk between reprocessing and reuse (independent validation).

Features

• Flexibility: Vertical storage for up to 9 flexible endoscopes on three sliding extractable drawers.
• Optimal drying: Homogeneous air distribution through a high-quality drying circuit; HEPA H14 filtration for microbiological safety.
• Configurable doors: HST double-glass hinged doors, configurable for right- or left-hand opening; single- or double-door interlocked options with key lock.

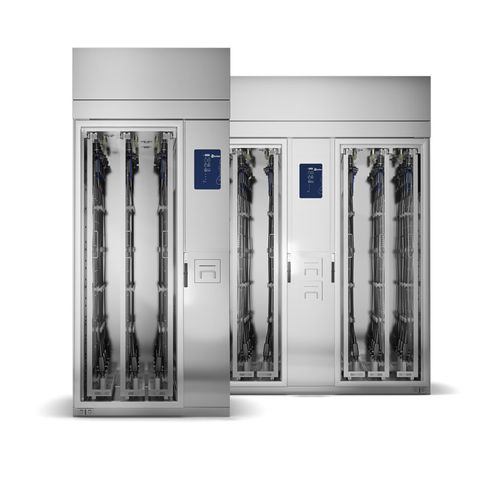

Configurations

• ED 150 Single Cabinet: Single-cabinet layout with technical compartment on the right side.
• ED 150 Double Cabinet: Double-cabinet layout with central technical compartment and unique frame structure to optimise space and workflow.

Dimensions (examples)

• Single Cabinet – single door: 968 x 810 x 2270 mm (38.11 x 31.88 x 89.37 in).
• Single Cabinet – double door: 968 x 845 x 2270 mm (38.11 x 33.28 x 89.37 in).
• Double Cabinet – single door listing: 1713 x 810 x 2270 mm (67.44 x 31.88 x 89.37 in).

Certifications & Compliance

• SteelcoBelimed drying cabinets are designed to comply with EN 16442 (performance) and relevant standards EN ISO 14971, EN 61010-1/2-010, EN IEC 61326-1, EN 62366 and EN 62304.
• Classified as CE medical devices under Regulation (EU) 2017/745 (MDR).

Technical specifications

• Model / Series: ED 150 Series
• Brand: SteelcoBelimed
• Storage type: Vertical storage on three extractable sliding drawers
• Capacity: Up to 9 flexible endoscopes (vertical storage)
• Drying method: Filtered air blown through endoscope channels and over external surfaces
• Connectors: Specific CPC connectors for drying circuit connection
• Filter: HEPA H14
• Doors: Single or double interlocked doors with key lock; HST double-glass hinged doors; configurable opening (right/left)
• Microbiological protection: Maintains microbiological integrity up to 720 hours (independently validated)
• Configurations: Single cabinet (technical compartment right) and double cabinet (technical compartment central)
• Dimensions examples: 968 x 810 x 2270 mm; 968 x 845 x 2270 mm; 1713 x 810 x 2270 mm
• Regulatory / safety standards: CE medical device (MDR 2017/745) and compliance with listed EN/ISO standards
