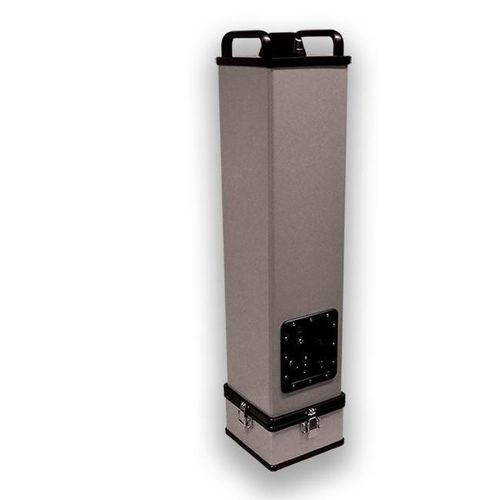

Ionising radiation detector RanidPort

for scientific researchfor medical applicationsfor environmental analysis

Portal detection solutions designed for fixed and mobile use: RanidPort-N, RanidPort-N Outdoors, and RanidPort Mobile. Suitable for indoor and outdoor applications. Allows for very high sensitivity requirements to detect and identify all types of radionuclides. Advanced Spectroscopic Portal Monitors RanidPort solutions have a high volume NaI(Tl) scintillation detector, with rapid detection and identification capabilities, in presence of radioactivity or radioactive material. Different solutions for pedestrian, vehicle, or cargo portal monitors, and even a mobile portal monitor is available. Benefits - Large volume NaI (Tl) gamma detector - Neutron detection with high energy gamma radiation - Neutron booster in fixed applications - Indoor and outdoor solutions - Fixed and mobile applications - Flexible configuration: single or double sided and multiple detector portals for vehicle screening applications - Automated operation with optional camera surveillance system - Web server based Graphical User interface - MySQL based spectroscopic database Product Variants - RanidPort-N Outdoors: Designed for rough outdoor applications. - RanidPort-N: Designed for fixed indoor applications. - RanidPort Mobile: Designed for mobile use: car, boat, helicopter or airplane. Applications RanidPort different radiation portals can be used for locating orphan sources, or to detect illicit radioactive material trafficking. Based on Environics unique reachback concept, these RN detection equipment have the capability to control data flow between remote units, databases, and reachback expert support centre. Technical Data Mobile: - Nuclide identification and categorization: Designed to fulfill and exceed standard N42.34 ANSI Isotype list - Energy range: 30 keV – 8 MeV - MCA: 2048 channels, Maximum Count Rate > 250k cps - Battery: 12V, 20Ah, removable battery unit. Optional 33Ah battery unit - Communication: Ethernet, 4G, Wi-Fi (802.11 b/g/n) - Neutron Detection: Capability to measure neutron range - Dust & Water Resistance: IP65 RanidPort-N: - Nuclide identification and categorization: Designed to fulfill and exceed standard N42.34 ANSI Isotype list - Energy range: 30 keV – 8 MeV - MCA: 2048 channels, Maximum Count Rate > 250k cps - Communication: Ethernet - Neutron Detection: Neutron moderator - Dust & Water Resistance: Indoor use Outdoors: - Nuclide identification and categorization: Designed to fulfill and exceed standard N42.34 ANSI Isotype list - Energy range: 30 keV – 8 MeV - MCA: 2048 channels, Maximum Count Rate > 250k cps - Communication: Ethernet - Dust & Water Resistance: IP55 Characteristics / Technical Specifications - High volume NaI(Tl) scintillation detector - Rapid detection and identification of radionuclides - Solutions for pedestrian, vehicle, cargo, and mobile monitoring - Flexible configuration for vehicle screening - Automated operation with optional camera system - Web-based GUI and MySQL database - Communication: Ethernet, 4G, Wi-Fi (depending on model) - Battery options for mobile use - IP65/IP55/Indoor resistance depending on model - Neutron detection capabilities
