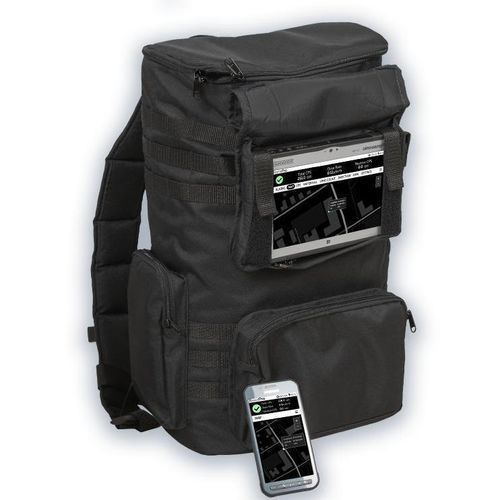

Ionising radiation detector RanidPro200

for medical applicationsnuclear medecinefor radiopharmacy

High performance and simple tools for radionuclide search, identification & location. Operator friendly easy user interface with internal mapping & history functions. Automated gamma radiation localizer for finding multiple sources. RanidSOLO - Spectrometric Radiation Source Locator for RanidPro200 RanidSOLO is a valuable add-on for RanidPro200 that enables tracking down multiple sources of gamma radiation. RanidSOLO operates as an automatic and reliable system, providing accurate directional information, within a challenging short time frame. This allows the operators in mission to easily track down one or even multiple sources of radiation. With information collected from different points on the field a triangulation method can be used to calculate the estimated the location of the source(s). Available for NaI (Tl) scintillator 2”x2” and LaBr3 scintillator 1.5”x1.5” detectors. Benefits - High sensitivity with very low false alarm rate - Simple & operator friendly user interface - Internal mapping tool - Illustrative history function - High precision & fast localization method which exceeds ANSI and IEC standard (15 degrees precision) - Remote control through a smartphone interface - Full reach back capability Full Reachback Capability RanidPro200 supports all commonly used wireless data transfer methods, and is able to be in constant contact with the control centers where the experts can process the measurements for more in-depth analysis. This helps to verify the threat rapidly and providing immediate instructions for action. The full reachback capability is also available via the backpack toughpad user interface. Environics is referenced in Border Security Report magazine, due to RanidPro200 and RanidSOLO usage during a crossborder reachback demonstration, which took place in Estonia by the end of 2017. “The Finnish Radiation and Safety Authority (STUK) was on duty at their facilities in Helsinki, Finland. While HT Nuclear Ltd provided the scientific support to the local reachback centre in Tallinn which was established in the premises of the Estonian Rescue Board, who hosted the demonstration and lead the search operation of radioactive material out of regulatory control.” Applications From locating orphan sources, to enhancing the radiological safety of critical infrastructures, and preventing the illegal smuggling of radioactive material into a country’s crossing border section, this radionuclide identifier backpack with added source location can also be integrated with both light and armoured reconnaissance vehicles. It can equally be used as a surveying tool of potentially hazardous areas by first response teams, or for monitoring high security events. Technical Data - Size: Approx. 440 x 340 x 190 mm (17”L x 13”W x 7”D) - Weight: Approx. 5.9kg with NaI and neutron detector - Power: Uses computer unit’s internal battery 100-240V (50-60Hz) - Battery Life: >6 hours without External battery unit Approx. 8 hours with external battery - Communications: WLAN, Internal 4G modem, Integrated GPS, Hot swappable battery, RJ-45 Ethernet (LAN/WAN) - Spectrum: Configurable as 2048 or 1024, Maximum Count Rate > 250 kcps - Standards: Fulfills IEC62694:2022 radiation detector requirements Key Features / Specifications - High performance radionuclide search, identification & location - Operator friendly interface with mapping & history - Automated gamma radiation localizer for multiple sources - RanidSOLO add-on for directional gamma source location - Available for NaI (Tl) and LaBr3 detectors - High sensitivity, low false alarm rate - Wireless data transfer: WLAN, 4G, GPS, Ethernet - Battery life: up to 8 hours with external battery - Weight: approx. 5.9kg - Size: approx. 440 x 340 x 190 mm - Meets IEC62694:2022 standards
