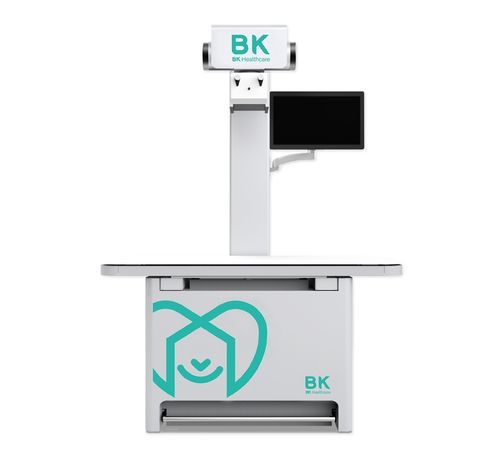

Digital veterinary X-ray system Model SL

with table

Product overview
One-step veterinary imaging solution combining static radiography and dynamic fluoroscopy with real-time observation. Designed to reduce missed diagnoses and to be resistant to respiratory artifacts and animal stress; ABS intelligent control enables ultra-low radiation pulsed fluoroscopy while preserving diagnostic image quality.

Key features

• Static and dynamic imaging in a single system with video playback
• Real-time observation of dynamic images; immune to respiratory artifacts
• Reduced stress-related artifacts and procedural risks for animals
• ABS intelligent control with ultra-low radiation and pulse fluoroscopy
• Pet bed with four-way movement and load capacity ≤150 kg

Technical specifications

• Detector: Cesium iodide (CsI) on amorphous silicon (a-Si), 17 × 17 inches; pixel size 139 μm; matrix 3072 × 3072; spatial resolution 3.6 lp/mm
• Active area frame rates: 5 fps (1×1, 3072×3072, 427×427 mm FOV); 20 fps (2×2, 1536×1536); 30 fps (3×3, 1024×1024)
• A/D conversion: 16 bit
• High-voltage generator: supply 220 V; nominal power 32 kW; max 150 kV; max 400 mA
• X-ray tube: Canon; focus size 0.6 mm / 1.2 mm; anode heat capacity 230 kHU; focus power: large 50 kW / small 20 kW (50 Hz)
• Software: imaging and processing software for veterinary applications

Dimensions & power

• Overall dimensions (L × W × H): 1400 × 900 × 1940 mm
• Pet bed size: 1400 × 720 mm; movement horizontal ±300 mm, longitudinal ±130 mm; load capacity ≤150 kg
• Supply voltage: 220V; nominal power: 32 kW
