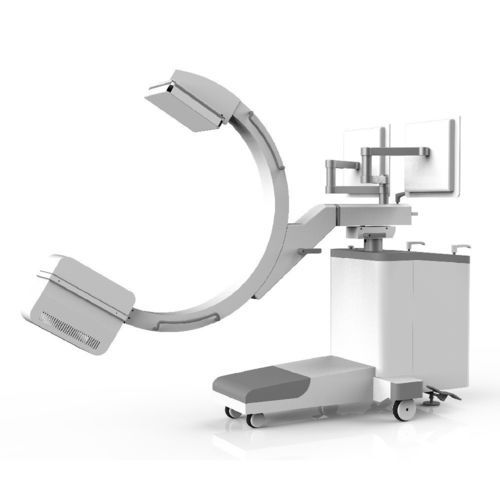

Mobile C-arm Model C

with flat panel detectorwith integrated video monitor

Overview
Mobile C-arm fluoroscopy system for real-time intraoperative imaging during surgical and interventional procedures. Compact footprint and mobility designed to support table-side positioning and multi-angle access.

Key features

• Real-time intraoperative follow-imaging
• High-definition eye-protective imaging with wide field of view
• Dynamic-static integration for flexible workflow
• Multi-angle adjustable intraoperative follow-imaging
• Small footprint and easy mobility

Technical specifications

• Detector: Flat-panel (Amorphous silicon + TFT) with CsI scintillator; Pixel pitch 154 μm; Pixel array 1536 × 1536; Active area >9"×9" (236.5 × 236.5 mm)
• Fluoroscopy modes and frame rates: Pulsed 1x1 1536×1536 15 fps; Pulsed 2x2 768×768 25 fps; Continuous 1x1 1536×1536 15 fps; Continuous 2x2 768×768 30 fps
• X-ray generator: Output power 3.5 kW; kV range 40–125 kV (IEC 60613-2010); mA range 0.1–50 mA; Focal spot size 0.6 / 1.5 mm (IEC60336)
• C-arm: Mobile; Display: 19"

Dimensions
2000×850×1800 mm

Integration & software

• Software languages: Chinese, English
• RIS/PACS: DICOM 3.0
• Patient management: emergency and general modes
• Image processing: WW/WL, zoom, pan, rotate, flip, ROI, negative, annotation, contrast enhancement, noise reduction, ABS, LIH
• Advanced measurements: Norberg Angle, TPLO, TTA, TTA2, Hip Distraction, VHS scaling
