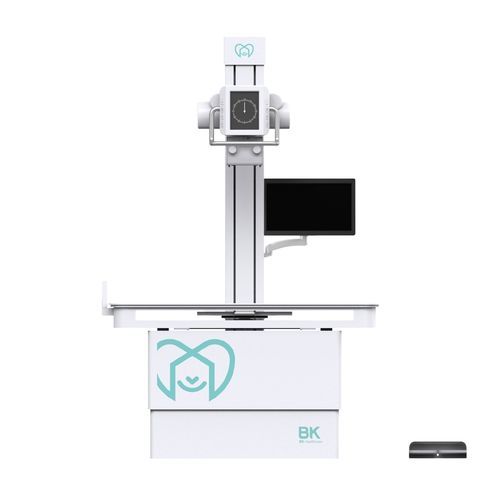

Digital veterinary X-ray system Dynamic Expert Pro DL

with table

Product overview
Dynamic Expert Pro DL is a veterinary digital radiography system optimized for imaging small and exotic animals. It integrates a 17×17 in CsI a‑Si flat panel detector with intelligent exposure and positioning assistance to support fast, low-stress examinations and immediate image review.

Key features

• Flexible multi-angle positioning ideal for exotic pets and small animals
• ABS intelligent exposure control for consistent, accurate dose management
• Intelligent positioning assistance for multi-angle and multi-position imaging
• Dynamic real-time playback for immediate evaluation and workflow efficiency
• High-resolution 17×17 in CsI a‑Si detector: 139 μm pixel size, 3072×3072 pixel matrix
• Multiple frame-rate modes: 5 fps (1×1, 3072×3072, 427×427 mm FOV); 20 fps (2×2, 1536×1536, 427×427 mm FOV); 30 fps (3×3, 1024×1024, 427×427 mm FOV)

Dimensions
Overall dimensions (mm): 1420 × 910 × 2125
Pet bed size: 1400 × 720 mm
Bed movement: four-way (Longitudinal: 70 mm ±10 mm; Transverse: 380 mm ±10 mm)
SID (tube elevation/lowering): 310 – 1010 mm
Bed panel bearing capacity: ≤150 kg

Technical specifications

• Flat panel detector – Probe technology: Cesium iodide amorphous silicon (a‑Si)
• Imaging size: 17 × 17 inches
• Pixel size: 139 μm
• Pixel matrix: 3072 × 3072
• A/D conversion: 16 bit
• Spatial resolution: 3.6 lp/mm
• Frame rates / Resolution / FOV: 5 fps (1×1, 3072×3072, 427×427 mm); 20 fps (2×2, 1536×1536, 427×427 mm); 30 fps (3×3, 1024×1024, 427×427 mm)
• High voltage generator: Supply voltage 220 V; Nominal power 32 kW; Max voltage 150 kV; Max current 400 mA
• X-ray tube (Canon): Focus size 0.6 mm / 1.2 mm; Anode heat capacity 230 kHU; Focus power large 50 kW / small 20 kW (50 Hz)
• Pet bed material: Melamine resin plate
• Bedface movement: Longitudinal 70 mm ±10 mm; Transverse 380 mm ±10 mm
• Bed size: 1400 × 720 mm
• SID range: 310 – 1010 mm
• Maximum bed load: ≤150 kg

Software and clinical use
Includes veterinary imaging and processing software with tools for DICOM integration, image enhancement and measurement, supporting routine and exotic-animal workflows.
