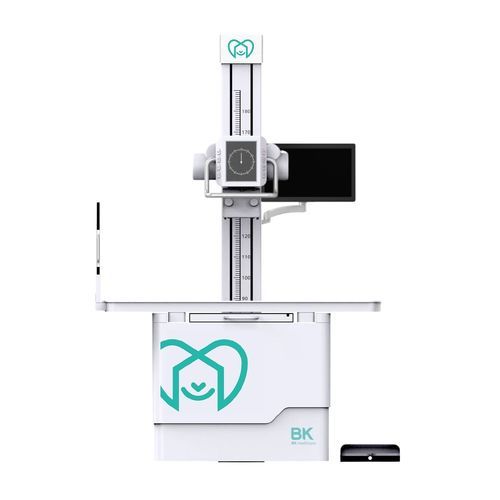

Digital veterinary X-ray system Static Expert Pro S

with table

Product overview
Compact veterinary digital radiography system designed for multi-positional imaging of small and medium animals. Intelligent image acquisition and positioning assistance speed up examinations and reduce retakes while prioritizing animal comfort.

Key features

• Intelligence: Intelligent image acquisition and smart positioning assistance
• Precision: Advanced image algorithms and precise exposure control
• Time-saving: Multi-angular, multi-positional (standing, recumbent) shooting reduces positioning time
• Comfort: Minimizes animal stress and reduces the need for retakes

Dimensions
Dimensions (L×W×H): 1420×910×2125 mm

Technical specifications

• Detector type: Flat panel detector
• Probe technology: Cesium iodide (CsI) with amorphous silicon (a-Si)
• Imaging size: 17 × 17 (432 × 432 mm)
• Pixel size: 139 μm
• Pixel matrix: 2912 × 2912
• A/D conversion: 16 bit
• Spatial resolution: 3.6 lp/mm
• Supply voltage: 220 V
• Generator nominal power: 32 kW
• Maximum voltage: 125 kV
• Maximum current: 400 mA
• X-ray tube: Canon
• Focal spot: 1.0 mm / 2.0 mm
• Anode heat capacity: 140 kHU
• Focus power (50 Hz): large focus 42.5 kW, small focus 21 kW
• Pet bed material: Melamine resin plate
• Bed movement: Four-way movement (Longitudinal: 70 mm ±10 mm; Transverse: 380 mm ±10 mm)
• Bed size: 1400 × 610 mm
• SID (tube elevation and lowering): 310 - 1010 mm
• Bed panel bearing capacity: ≤150 kg

Included software
Imaging and processing software for veterinarians with DICOM compatibility, image enhancement and measurement tools.
