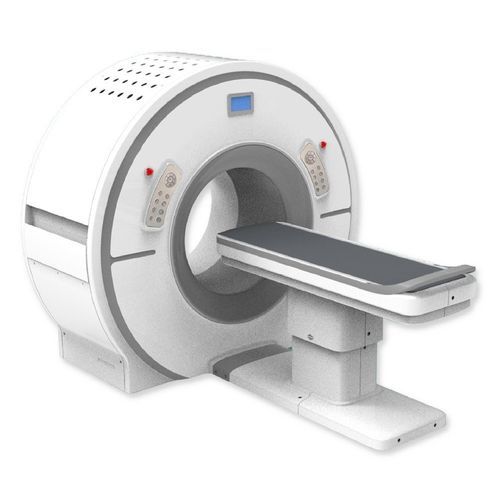

Large animal veterinary CT scanner Model X9

Product features

• Dimensions: 2110x2608x1904 mm (veterinary CT for large animals)
• Minimum slice thickness: 0.19 mm
• Maximum number of slices: 1024
• Frame rate: up to 45 fps
• Electric scanning bed with laser positioning for improved workflow
• High heat-capacity X-ray generator for continuous multi-scan operation
• Flat-panel detector with fiber-optic transmission for stable image acquisition
• Low radiation dose optimized for patient and operator safety

Product details
Mechanical structure:
80 cm large-diameter aperture accommodates large-sized animals. Electric scanning bed with laser positioning increases positioning accuracy and throughput.

X-ray generator:
High-power design with elevated heat capacity supports continuous multiple scans while maintaining stable output.

Flat-panel detector:
Equipped with a leading-brand FPD and fiber-optic transmission to achieve up to 45 frames per second and consistent imaging performance.

Workstation:
Fast operating speed, user-oriented interface, comprehensive clinical tools and advanced reconstruction algorithms to support diagnostic workflow.

Site requirements:
Installation footprint: 6 m²; power supply: 220 V; no circuit modification required for standard installations.

Technical specifications

• Dimensions: 2110x2608x1904 mm
• Minimum slice thickness: 0.19 mm
• Maximum number of slices: 1024
• Frame rate: up to 45 fps
• Aperture: 80 cm
• Installation space: 6 m²
• Voltage: 220 V
