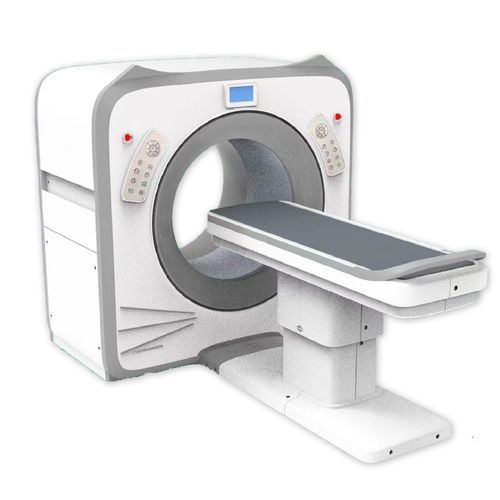

Large animal veterinary CT scanner Model X7

Product Features

• Dimensions: 1663 x 2608 x 1750 mm — Veterinary-specific CT
• Minimum slice thickness: 0.26 mm
• Maximum number of slices: 768
• Easy installation: reduces operational barriers
• High frame rate: smooth, stable image acquisition
• Extreme spatial resolution: precise anatomical detail
• Low radiation dose: protects patient and operator

Product Details
Mechanical Structure
80 cm large-diameter aperture accommodates large-sized animals. Electric scanning bed with laser positioning improves operational efficiency.

X-Ray Generator
High-power design suited for scanning large animals. High heat capacity supports continuous multiple scans while maintaining stable performance.

Flat Panel Detector
FPD from a global manufacturer with fiber-optic transmission achieves a frame rate up to 45 frames per second, ensuring precise imaging.

Workstation
Fast operation, user-friendly interface, comprehensive functions and advanced algorithm processing.

Site Requirements
Requires approximately 6 m² installation space and 220 V power, no circuit modification required.

Specifications

• Model: Model X7
• Application: Veterinary-specific CT
• Dimensions: 1663 x 2608 x 1750 mm
• Aperture: 80 cm large-diameter aperture (suitable for large-sized animals)
• Minimum slice thickness: 0.26 mm
• Maximum number of slices: 768
• Flat Panel Detector frame rate: up to 45 frames/s
• Scanning bed: electric scanning bed with laser positioning
• X-Ray generator: high-power design, high heat capacity for stable continuous multi-scan
• Workstation: fast operation, user-friendly interface, advanced algorithm processing
• Site requirements: approx. 6 m² installation space, 220 V power, no circuit modification required
• Design focus: high frame rate, extreme spatial resolution, low radiation dose
