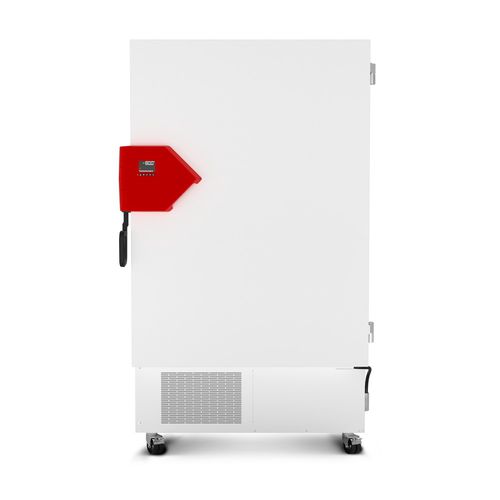

Laboratory freezer UF V 700

for sample storagecabinetupright

Product description
The BINDER ultra low temperature freezer ensures the safe storage of samples at -90 °C. It combines environmental compatibility with low energy consumption, convenient operation and an individual safety concept.

Benefits

• Lowest energy consumption in its class
• Climate-neutral refrigerants R-290 and R-170
• Thermal insulation with long-life vacuum insulation panels (VIPs)
• Corrosion-resistant interior fully made of stainless steel

Important characteristics

• Temperature range: -90 °C to -40 °C
• Powerful cascade compressor cooling unit
• Thermal insulation using long-life VIPs
• Innovative door gasket concept reduces ice buildup
• Ergonomic door handle
• Detachable inner doors made of stainless steel
• 3 stainless-steel shelves with flexible positioning (std.)
• Water cooling available depending on version
• Zero-voltage alarm contact for in-house alarm systems
• Internal data logger — measured values readable in open format via USB
• Ethernet interface
• 3 access ports, Ø 28 mm, rear

Technical specifications — Data
Article Number: 9020-0348; 9020-0350; 9020-0354; 9020-0352
Designation: UFV700-230V; UFV700-230V-W; UFV700UL-240V; UFV700UL-120V
Option model: Standard; Water cooling; Standard; Standard

Technical specifications — Performance Data Temperature
Article Number: 9020-0348; 9020-0350; 9020-0354; 9020-0352
Temperature range: -90...-40 °C (all variants)
Temperature uniformity at -80 °C: 2.5 ± K (all variants)
Temperature fluctuation at -80 °C: 1.5 ± K (all variants)
Cooling down time 22 °C → -80 °C: 450 min (all variants)

Technical specifications — Electrical data
Article Number: 9020-0348; 9020-0350; 9020-0354; 9020-0352
Rated Voltage: 230 V; 230 V; 208...230 V; 115 V
Power frequency: 50 Hz; 50 Hz; 60 Hz; 60 Hz
Nominal power: 1.6 kW; 1.6 kW; 1.8 kW; 1.4 kW
Unit fuse: 10.0 A; 10.0 A; 10.0 A; 15.0 A
Phase (Nominal voltage): 1~; 1~; 2~; 1~

Technical specifications — Dimensions and weights
Article Number: 9020-0348; 9020-0350; 9020-0354; 9020-0352
Interior volume: 736 L
Net weight (empty): 288 kg
Permitted load of individual compartment: 50 kg
Permitted load: 200 kg
Wall clearance back: 100 mm
Wall clearance sidewise: 250 mm

Technical specifications — Housing dimensions (not incl. fittings and connections)
Width net: 1,110 mm
Height net: 1,966 mm
Depth net: 938 mm

Technical specifications — Internal Dimensions
Interior width: 890 mm
Interior height: 1,300 mm
Interior depth: 636 mm
Inner doors: 2
Unit doors: 1

Technical specifications — Environment-specific data
Sound-pressure level: 47 dB(A)
Average heat compensation at set value -80 °C and Ta = 21 °C: 340 W
Energy consumption at setpoint -80 °C and Tu = 20 °C: 8.1 kWh/d

Technical specifications — Fixtures
Number of shelves (std./max.): 3/11

Technical specifications — Load-variants
Freezer racks per compartment: 6
Cryoboxes (50 mm): 528

Options, accessories & services (selection)

• CO2 backup cooling — factory installed option (increases depth), includes battery-backed alarm option (8012-1936)
• Compartment doors — foam-filled compartment doors with gasket (8012-1894)
• Shipping pallet with unloading ramp (8012-1907)
• Calibration certificates (various types and scopes; e.g. 20 measuring points)
• Alarm system, battery-backed (8012-1910)
• Analog output 4-20 mA for temperature values (8012-1898)
• Buck-boost converter for automatic voltage compensation (8012-1897)
• Door lock / lockable door handle (8012-1911)
• Door access system with NumPad (8012-1899)
• Maintenance contracts and service packages (BRONZE/SILVER/GOLD 3-year options)
• APT-COM™ multi-management software editions (BASIC / PROFESSIONAL / GLP)
• Wide range of racks, boxes, cryobox sets, shelves and deicing kit

Characteristics / technical specifications

• Model: UF V 700
• Temperature range: -90 °C to -40 °C
• Interior usable volume: 736 L
• Interior dimensions (W×H×D): 890 mm × 1,300 mm × 636 mm
• Exterior dimensions (net W×H×D): 1,110 mm × 1,966 mm × 938 mm
• Net weight (empty): 288 kg
• Energy consumption at -80 °C (Ta 20 °C): 8.1 kWh/d
• Average heat compensation at -80 °C (Ta 21 °C): 340 W
• Cooling down time 22 °C → -80 °C: 450 min
• Temperature uniformity at -80 °C: ±2.5 K; fluctuation ±1.5 K
• Nominal power (varies by voltage): 1.6 kW (230 V versions), 1.8 kW (208...230 V), 1.4 kW (115 V)
• Refrigerants: R-290 and R-170 (climate-neutral refrigerants)
• Insulation: vacuum insulation panels (VIPs)
• Standard shelving: 3 shelves (up to 11 positions)
• Cryobox capacity (50 mm): 528
• Access and interfaces: Ethernet, USB (open-format data logger); zero-voltage alarm contact
• Sound level: 47 dB(A)
