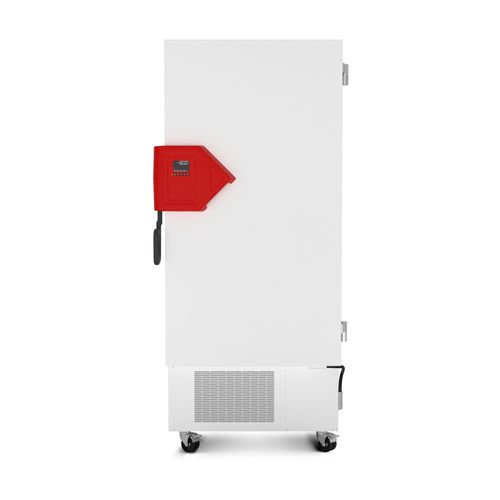

Laboratory freezer UF V 500

for sample storageuprightvertical

Product description
BINDER ultra-low temperature freezer UF V 500 provides secure long-term storage of samples at -90 °C. It combines climate-neutral refrigerants with low energy consumption, stainless-steel interior construction and a tailored safety and monitoring concept for laboratory and industrial applications.

Benefits

• Lowest energy consumption in its class
• Climate-neutral refrigerants R-290 and R-170
• Long-life vacuum insulation panels (VIP) for thermal efficiency
• Corrosion-resistant stainless-steel interior

Important characteristics

• Temperature range: -90 °C to -40 °C
• Powerful cascade compressor cooling
• VIP thermal insulation
• Innovative door gasket concept to reduce ice buildup
• Ergonomic door handle
• Detachable inner doors in stainless steel
• 3 stainless-steel shelves (adjustable)
• Optional water cooling (model-dependent)
• Zero-voltage alarm contact for facility alarm systems
• Internal data logger; measured values exportable in open format via USB
• Ethernet interface
• 3 rear access ports, Ø 28 mm

Technical specifications — Data
Article Number: 9020-0347 | 9020-0349 | 9020-0353 | 9020-0351
Designation: UFV500-230V | UFV500-230V-W | UFV500UL-240V | UFV500UL-120V
Option model: Standard | Water cooling | Standard | Standard

Performance Data Temperature

• Temperature range: -90...-40 °C (all variants)
• Temperature uniformity at -80 °C: 2.5 ± K (all variants)
• Temperature fluctuation at -80 °C: 1.5 ± K (all variants)
• Cooling down time from 22 °C to -80 °C: 360 min (all variants)

Electrical data

• Rated Voltage: 230 V | 230 V | 208...230 V | 115 V
• Power frequency: 50 Hz | 50 Hz | 60 Hz | 60 Hz
• Nominal power: 1.6 kW | 1.6 kW | 1.8 kW | 1.4 kW
• Unit fuse: 10.0 A | 10.0 A | 10.0 A | 15.0 A
• Phase (Nominal voltage): 1~ | 1~ | 2~ | 1~

Dimensions and weights

• Interior volume: 501 L (all variants)
• Net weight (empty): 247 kg (all variants)
• Permitted load of individual compartment: 50 kg (all variants)
• Permitted total load: 200 kg (all variants)
• Wall clearance back: 100 mm; sidewise: 250 mm

Housing dimensions (not incl. fittings and connections)

• Width net: 826 mm
• Height net: 1,966 mm
• Depth net: 938 mm

Internal Dimensions

• Interior width: 606 mm
• Interior height: 1,300 mm
• Interior depth: 636 mm
• Inner doors: 2
• Unit doors: 1

Environment-specific data

• Sound-pressure level: 47 dB(A)
• Average heat compensation at set value -80 °C (Ta = 21 °C): 330 W
• Energy consumption at set value -80 °C (Tu = 20 °C): 7.9 kWh/d

Fixtures

• Number of shelves (std./max.): 3 / 11

Load variants

• Freezer racks per compartment: 4
• Cryoboxes (50 mm): 352

Options, accessories & services (selection)

• CO2 backup cooling (factory installed; increases depth)
• Compartment inner doors (foam-filled with gasket)
• Shipping pallet with unloading ramp
• Calibration certificates (temperature) — various levels
• Battery-backed alarm system
• Analog output 4-20 mA
• Buck-boost converter (voltage compensation)
• Door lock and electromechanical access systems (NumPad)
• Shelves, racks, cryoboxes and chamber rack sets
• Maintenance contracts (Bronze / Silver / Gold)
• Qualification services (IQ / OQ / PQ) and commissioning
• APT-COM™ 4 software editions (BASIC / PROFESSIONAL / GLP)

Technical specifications

• Model: UF V 500
• Temperature range: -90 °C to -40 °C
• Interior usable volume: 501 L
• Interior dimensions (W×H×D): 606 × 1,300 × 636 mm
• External net dimensions (W×H×D): 826 × 1,966 × 938 mm
• Net weight (empty): 247 kg
• Permitted load (total): 200 kg; per compartment: 50 kg
• Number of shelves (std./max.): 3 / 11
• Cryobox capacity (50 mm): 352
• Temperature uniformity at -80 °C: 2.5 ± K
• Temperature fluctuation at -80 °C: 1.5 ± K
• Cooling-down time (22 °C to -80 °C): 360 min
• Energy consumption at -80 °C (Tu 20 °C): 7.9 kWh/d
• Rated voltage / electrical variants: 230 V (standard); options for 115 V, 208...230 V, 240 V
• Nominal power: typically 1.6 kW (varies by variant)
• Sound-pressure level: 47 dB(A)
• Refrigerants: R-290 and R-170 (climate-neutral)
• Insulation: Vacuum insulation panels (VIP) — long-life
• Interior material: Stainless steel
• Interfaces: USB (open-format data logger), Ethernet; zero-voltage alarm contact
