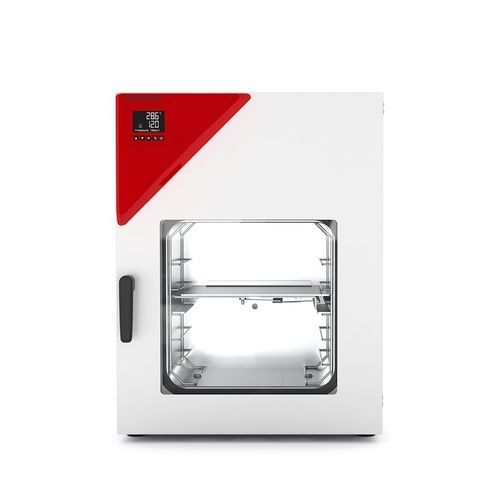

Drying oven VD 56

for scientific researchlaboratoryvacuum

Product description
BINDER VD series vacuum drying chambers provide controlled, gentle drying for non-flammable solvents through precise temperature regulation and patented expansion-rack technology that optimizes heat transfer. Shelves can be repositioned for flexible sample arrangement and the interior is designed for easy cleaning. Suitable for laboratories and industrial R&D where controlled drying under reduced pressure is required.

Benefits

• Fast, gentle drying under vacuum to protect heat-sensitive samples
• Optimum heat transfer via large thermal conducting plates and expansion rack
• Proven safety concept for safe operation with non-flammable solvents
• Modular complete-system option available with vacuum pump and pump cabinet

Important characteristics

• Temperature range: ambient +9 °C to +220 °C
• Controller with digital display for pressure and temperature
• Program-controlled drying monitoring with automatic ventilation at end of process
• Internal data logger; measured values readable in open format via USB
• One aluminum expansion rack, freely positionable
• Inert gas connection
• Universal access port DN 16 for introduction of external measuring devices
• Shatterproof, spring-mounted safety glass panel
• Large viewing window with optional interior lighting
• Computer interface: Ethernet

Technical specifications

• General data
  Article numbers (examples): 9630-0002, 9630-0006; Designation examples: VD056-230V (230 V) / VD056UL-120V (120 V); Option model: Standard
• Temperature
  Temperature uniformity at 100 °C: 1.2 ± K; Temperature fluctuation at 100 °C: 0.1 ± K; Heating time to 100 °C: 80 min
• Vacuum
  Leak rate: 0.01 bar/h; Pressure fluctuation over time at 50 mbar: 1 ± mbar; Pressure fluctuation over time at 400 mbar: 70 ± mbar
• Electrical
  Rated voltage: 200...230 V (model 9630-0002) / 100...120 V (model 9630-0006); Power frequency: 50/60 Hz; Nominal power: 1.4 kW; Unit fuse: 8.0 A (230 V) / 16.0 A (120 V); Phase: 1~
• Connections
  Vacuum connection / measuring access port: DN 16 mm; Compressed air connection for pressure-encapsulation: 5 NW
• Dimensions & weight
  Interior volume: 55 L; Net weight (empty): 96 kg; Load per rack: 20 kg; Permitted total load: 60 kg; Wall clearance back: 100 mm; Wall clearance sidewise: 70 mm
• Cabinet dimensions (without fittings)
  Net width: 638 mm; Net height: 815 mm; Net depth: 461 mm; Internal dimensions (W×H×D): 400 × 400 × 343 mm; Unit doors: 1; Number of shelves (std./max.): 1 / 5
• Acoustic & energy
  Sound-pressure level: 40 dB(A); Energy consumption at 100 °C: 180 Wh/h
