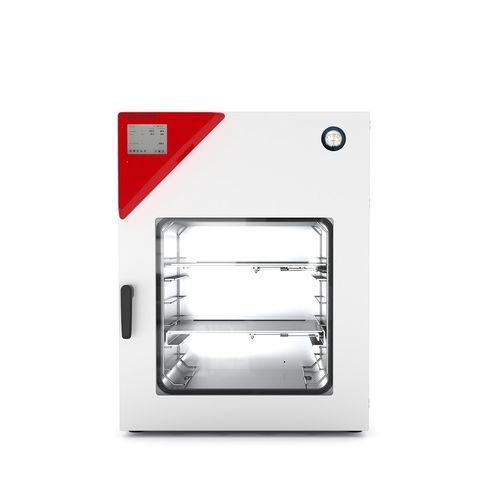

Drying oven VDL 115

laboratoryvacuumbenchtop

Overview
BINDER VDL series safety vacuum drying chambers provide controlled drying of organic solvents in an explosion-protected enclosure. Explosion-protected according to ATEX directive 2014/34/EU: EX II 2/3/- G IIB T3 Gb/Gc/- X.

Benefits

• Fast, gentle drying with controlled temperature and vacuum
• Optimum heat transfer via large thermal-conducting plates
• Safe operation based on an ATEX-compliant safety concept
• Optional modular complete system with vacuum pump and pump chamber

Key features

• Temperature range: ambient +9 °C to +110 °C
• ATEX classification: EX II 2/3/- G IIB T3 Gb/Gc/- X
• Intuitive touchscreen controller with graphical pressure and temperature display
• Program-controlled drying monitoring with automatic ventilation at process end
• Internal data logger, open-format export via USB
• Pressure control for heating release from <100 mbar
• Two aluminium expansion racks, positionable
• Universal ventilation connection for ambient air or inert gas
• Universal access port DN 16 for external measuring devices
• Shatterproof, spring-mounted safety glass panel and large viewing window
• Computer interface: Ethernet

Technical data (select)

• Article number: 9630-0011 | 9630-0015
• Designation: VDL115-230V | VDL115-120V
• Temperature uniformity at 100 °C: 2.9 ± K
• Temperature fluctuation at 100 °C: 0.1 ± K
• Heating up time to 100 °C: 170 min
• Leak rate: 0.01 bar/h
• Interior volume: 119 L
• Net weight (empty): 158 kg
• Interior dimensions (W×H×D): 506 × 506 × 460 mm
• Exterior dimensions (W×H×D): 743 × 942 × 581 mm
• Shelves (std./max.): 2/6; load per rack: 20 kg; permitted load: 70 kg
• Rated voltage: 200...230 V | 100...120 V; nominal power: 1.6 kW

Options, accessories & services (selection)

• Expansion racks (aluminium or stainless steel)
• Door gasket (FKM, silicone-free)
• Calibration certificates and extended calibration options
• Additional universal ventilation connection (ambient air or inert gas)
• Universal access port DN 40 with blind flange
• Analog output 4-20 mA for temperature and pressure
• Pt100 sensor for sample temperature measurement
• Pump chamber and vacuum pump VP5 EX (ATEX)
• APT-COM™ logging & management software (editions BASIC / PROFESSIONAL / GLP)
• Qualification documents (IQ/OQ/PQ)
• Service contracts (maintenance, commissioning, safety tests)

Technical specifications

• Model name: VDL 115; Series: VDL (vacuum drying chambers for flammable solvents)
• ATEX classification: EX II 2/3/- G IIB T3 Gb/Gc/- X
• Temperature range: +9 °C above ambient to +110 °C
• Controller: touchscreen with graphical pressure and temperature display; internal data logger with USB export
• Interfaces: Ethernet; universal ventilation connection for ambient air or inert gas
