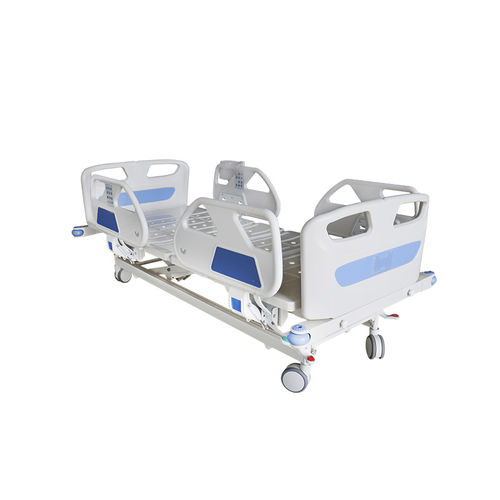

Hospital bed MF402D-22

electricTrendelenburgheight-adjustable

Introduction
The multifunctional electric hospital bed uses an electric control system to provide multiple adjustable postures for clinical care and rehabilitation, including back lift, leg lift, whole-bed tilt forward and backward, integrated weighing and overall height adjustment. It supports clinical procedures, facilitates the work of medical staff and helps reduce manual handling.

Key details

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply

Design and main components

• Bed frame: Welded high‑profile steel frame with electrostatic surface coating for corrosion resistance and ease of cleaning.
• Bed board: One‑piece formed cold‑rolled steel plate with electrostatic coating for durability and hygiene.
• Head and foot panels: Injection‑molded ABS engineering plastic; plug‑in, removable design with protective anti‑collision wheels.
• Casters: 125 mm central‑control casters from a recognised brand; flexible rotation, synchronous braking and locking for stability.
• Guardrails: Synchronously lifting guardrails with angle indicators; dampers to control speed and noise; embedded key structure to enable patient operation.
• Weighing system: Integrated patient weighing function with data display and storage to support clinical decisions.
• Electronic control: Motors and control units from established suppliers for stable operation and safety.
• Central control screen and OLED/LCD: Centralised operation for medical staff, measurement display, calibration and unit switching (kg/lb).

Functions

• Multiple adjustable sections (back, thigh, calf), whole‑bed tilt forward/backward and overall height adjustment; integrated weighing and centralised control to assist patient positioning, clinical procedures and rehabilitation workflows.

Technical specifications

• Model: MF402D-22
• Size (L*W*H) mm: 2250*1080*500~800 (±10mm)
• Back panel adjustable angle: 0° ~ 70°
• Thigh panel adjustable angle: 0° ~ 30°
• Calf panel adjustable angle: 0° ~ 10°
• Maximum whole‑bed backward tilt: ≥ 12°
• Maximum whole‑bed forward tilt: ≥ 12°
• Power supply: 220V/110V, 50/60Hz
• Safe load (maximum): 175 kg
• Protection grade: IPX4
• Device class: Category II
• Package size (L*W*H) mm: 2200*1200*730
• Net weight: 175 kg
• Gross weight: 225 kg
