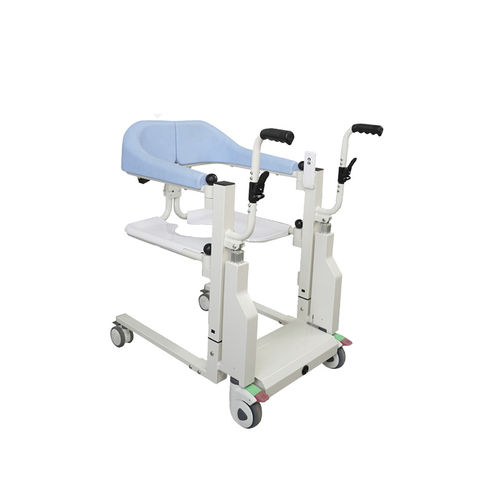

Hydraulic patient lift MFYW201electricon castersnot specified
Add to favorites
Compare this product
Characteristics
- Operation
- electric, hydraulic
- Configuration
- on casters, not specified
- Patient type
- adult
- Options
- with weighing scale
- Lifting capacity
120 kg
(264.6 lb)- Lifting height
Min.: 15 cm
(6 in)Max.: 23 cm
(9 in)- Base width
63 cm
(24.8 in)- Base length
53 cm
(20.9 in)- Weight
Min.: 33 kg
(72.75 lb)Max.: 33.5 kg
(73.85 lb)
Description
Introduction
The transfer lift is designed to move patients safely and ergonomically between positions to facilitate nursing tasks and patient handling. It is suitable for movement and weighing of critically ill patients, emergency surgery patients, special-care patients and long-term bedridden patients, and for position control of DPS patients.
Brand
BIOBASE
Product origin
CHINA
Delivery time
Within 7 days
Supply capacity
Factory Direct Supply
Features
Technical Parameters (table)
Model
MFYW201 (Upgrade model) MFYW102 (Upgrade model)
External Size (W*D*H)
630*530*(870~1100) mm 630*530*(750~900) mm
Brake
Foot switch (both models)
Driving Method
Electric drive pusher (MFYW201) Hydraulic pressure drive (MFYW102)
Passing Width
560 mm 560 mm
Lifting Height
230 mm 150 mm
Load-bearing
120 kg (both models)
Power Supply
AC100~240V, 50/60Hz (both models)
Packing Size (W*D*H)
760*550*420 mm 760*550*420 mm
Gross Weight
33 kg 33.5 kg
Characteristics / technical specifications
The transfer lift is designed to move patients safely and ergonomically between positions to facilitate nursing tasks and patient handling. It is suitable for movement and weighing of critically ill patients, emergency surgery patients, special-care patients and long-term bedridden patients, and for position control of DPS patients.
Brand
BIOBASE
Product origin
CHINA
Delivery time
Within 7 days
Supply capacity
Factory Direct Supply
Features
- Toilet-compatible design; usable in bedrooms and bathrooms for flexible patient transfers.
- Extended all-around arc-shaped armrests to reduce collision risk and provide a secure grip.
- Thickened sponge cushion for improved patient comfort during transfers.
- Competitive cost compared with similar products, suitable for institutional procurement.
Technical Parameters (table)
Model
MFYW201 (Upgrade model) MFYW102 (Upgrade model)
External Size (W*D*H)
630*530*(870~1100) mm 630*530*(750~900) mm
Brake
Foot switch (both models)
Driving Method
Electric drive pusher (MFYW201) Hydraulic pressure drive (MFYW102)
Passing Width
560 mm 560 mm
Lifting Height
230 mm 150 mm
Load-bearing
120 kg (both models)
Power Supply
AC100~240V, 50/60Hz (both models)
Packing Size (W*D*H)
760*550*420 mm 760*550*420 mm
Gross Weight
33 kg 33.5 kg
Characteristics / technical specifications
- Model: MFYW201 (Upgrade model); MFYW102 (Upgrade model)
- External Size (W*D*H): MFYW201: 630*530*(870~1100) mm; MFYW102: 630*530*(750~900) mm
- Brake: Foot switch (both models)
- Driving Method: MFYW201: Electric drive pusher; MFYW102: Hydraulic pressure drive
- Passing Width: 560 mm (both models)
- Lifting Height: MFYW201: 230 mm; MFYW102: 150 mm
- Load-bearing (capacity): 120 kg
- Power Supply: AC100~240V, 50/60Hz
- Packing Size (W*D*H): 760*550*420 mm (both models)
- Gross Weight: MFYW201: 33 kg; MFYW102: 33.5 kg
- Typical applications: patient movement and weighing in ICU, emergency rooms, special-care wards and long-term care; position control for DPS patients
