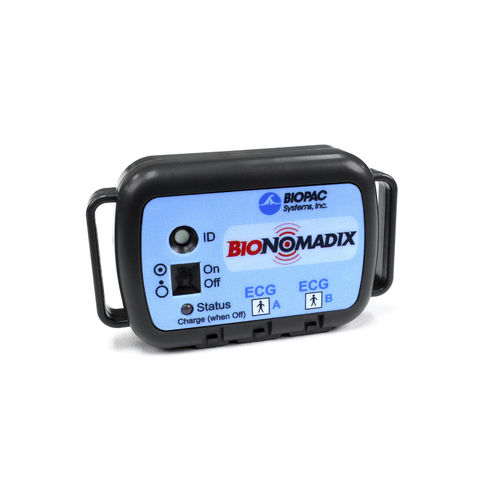

ECG transmitter BN-ECG2-T

wireless

The Dual Wireless ECG BioNomadix transmitter is specifically designed to measure Electrocardiogram (ECG) data on one or both channels. Collect data from just LEAD I and LEAD II to generate LEAD III and all the augmented leads (aVR, aVL and aVF). ECG signal data is transmitted at a rate of 2,000 Hz, providing an extremely high resolution ECG waveform at the receiver’s output. Raw data from the pair is bandlimited from 0.05 Hz to 150 Hz, to provide a very high quality recording. The matched pair incorporates internal, non-distorting, highpass and lowpass filters to provide for high quality amplification of the complete ECG waveform and associated complexes. The high signal to noise ratio and high time-based sampling resolution permit the pair to be used for exacting heart rate variability studies. The transmitter can be used with the Logger or with a matched Receiver to emulate a “wired” connection from subject to computer, with all the benefits of a fully-wireless recording system. Using AcqKnowledge’s equation generator, a six-lead ECG can be generated from the two recorded ECG leads from the module pair. Use AcqKnowledge software to provide a complete Lead II ECG analysis. The software automatically scores the data and extracts the measurements of interest on a cycle-by-cycle basis. The results are automatically exported to Excel or pasted in the Journal file. AcqKnowledge also includes a fully automated HRV analysis feature. The HRV analysis provides values for VLF, LF, HF, VHF, sympathetic, and vagal, as well as the sympathetic / vagal balance.
