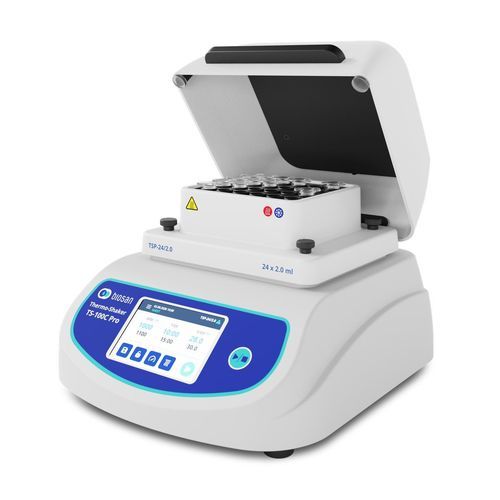

Orbital thermo-mixer TS-100C Pro

benchtopfor DNA extractionfor RNA extraction

Description
The TS-100C Pro is a programmable laboratory thermo-shaker that combines precise heating and cooling, intensive mixing and interchangeable thermoblocks in one compact instrument. Designed for repeatable sample-preparation workflows, it allows users to create and save multi-step programs directly on the touchscreen, reducing manual parameter changes and transfers between separate instruments.

KEY BENEFITS

• Heating, cooling and mixing in one instrument for efficient temperature-controlled sample preparation.
• Mixing speeds up to 2500 rpm support intensive mixing, bead resuspension, extraction and lysis workflows.
• Automatic thermoblock recognition identifies the installed block and limits maximum mixing speed accordingly.
• Quick thermoblock exchange without tools or separate cables reduces setup time between applications.
• Advanced on-screen programming with up to 20 saved programs and up to 20 steps per program, including holds, repetitions and parameter transitions.
• Clear touchscreen interface displays set and actual temperature, speed, time and program status.
• Quick Mix function starts a short mixing cycle using selected parameters without creating a full program.
• Optional heated lid minimises condensation; lid presence is detected automatically and heating can be enabled or disabled.
• Five configurable user profiles and screen lock protect methods in shared laboratories.
• Integrated system and maintenance information (serial number, firmware version, operating hours, calibration status, service reminders and diagnostics) with on-screen QR code to access the manual.

APPLICATIONS
The TS-100C Pro is suitable for DNA and RNA extraction, NGS library preparation, magnetic-bead cleanup and resuspension, cell lysis, protein extraction, enzymatic reactions, incubation, hybridisation and analytical sample preparation. A range of interchangeable thermoblocks allows configuration for different tube, strip and plate formats.

SPECIFICATIONS

• Temperature setting range: +4°C … +100°C
• Temperature control range: 15°C below ambient … +100°C
• Temperature setting resolution: 0.1°C
• Temperature stability: ±0.1°C
• Temperature accuracy at +37°C: ±0.5°C
• Average heating speed +25°C to +100°C: 8°C/min
• Average cooling speed +100°C to +25°C: 5°C/min
• Average cooling speed +25°C to +4°C: 1.8°C/min
• Temperature uniformity over block at +4°C: ±0.6°C
• Temperature uniformity over block at +37°C: ±0.1°C
• Temperature uniformity over block at +100°C: ±0.3°C
• Temperature calibration coefficient range: 0.936…1.063 (±0.063)
• Speed control range: 250–2500 rpm (maximum mixing speed depends on installed thermoblock)
• Digital time setting: 1 min–96 h / non–stop (1 min increment)
• Orbit: 2 mm
• Display: 3.5" TFT, 320×480 px
• Maximum continuous operation time: 168 h
• PC connection: USB-C
• Overall dimensions (W×D×H): 220×250×115 mm (without block)
• Weight: 5.1 kg
• Input current / power consumption: 12 V DC, 11.5 A / 138 W
• External power supply: Input AC 100–240 V; 50–60 Hz; Output DC 12 V
