digital thermo-shaker / orbital / sample preparation / for protein extraction



  • Motion type:


  • Applications:

    sample preparation, for protein extraction

  • Configuration:


  • Display:


  • Other characteristics:

    for microtubes, for PCR microplates

  • Temperature range:

    Max.: 100 °C (212 °F)

    Min.: 25 °C (77 °F)

  • Speed:

    Max.: 1,400 rpm (8,796.5 rad.min-1)

    Min.: 250 rpm (1,570.8 rad.min-1)

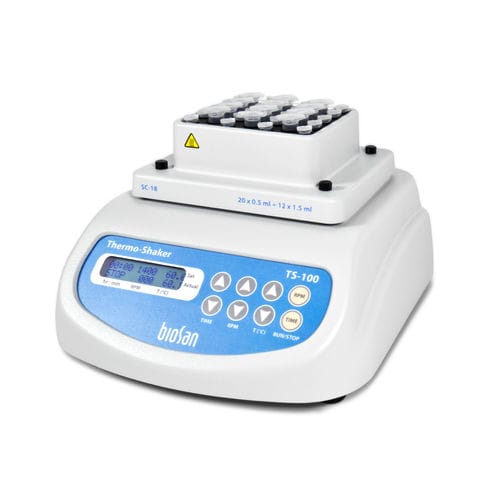

Thermo–Shaker TS-100 provides intensive mixing and temperature control of samples in microtest tubes or PCR plate. Functions of heating (up to +100°C) and mixing can be performed both simultaneously and independently, i.e. the unit implements three devices in one:

1. Shaker;
2. Dry–block Thermostat;
3. Thermo–Shaker.

TS-100 is used for DNA analysis sample preparation, for extraction of proteins, polysaccharides, lipids and other cellular components. Features of TS-100 meet the increased requirements of the user, including:

Quickly reaches the set mixing speed and maintains same amplitude of rotation around the block;
Stable maintenance of the temperature of a wide range over the entire surface of the block;
LCD display shows the set and actual temperature, speed and time;
Quiet engine operation, compact size, long service life.

Heating source is a printed heating board (12 V). Mixing is provided by movement of orbital type.

The instrument is applicable in:

Genetic analysis — in extraction of DNA, RNA and further sample preparation;
Biochemical study of enzymatic reactions and processes;
Extraction of metabolites from cellular material.

Temperature Calibration Function

With the help of the temperature calibration function the user can calibrate the unit approx. ±6% of the selected temperature to compensate differences in the thermal behaviour of tubes from different manufacturers.
