vortex laboratory shaker / digital / benchtop



  • Motion type:


  • Display:


  • Configuration:


  • Rotational speed:

    Max.: 3,200 rpm (20,106 rad.min-1)

    Min.: 300 rpm (1,885 rad.min-1)

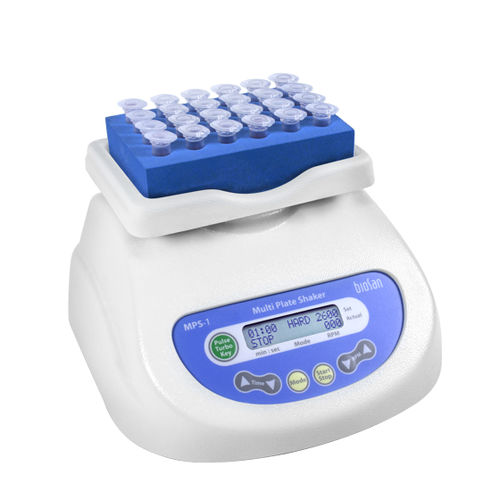

High–Speed Multi Plate Shaker MPS-1 can be used in virtually any application by providing adjustable mixing of reagents in microtest plates, PCR plates, deepwell plates and test tubes (shaking tubes 0.2 to 2 ml and vortexing any volume up to 50 ml).

The shaker is compact and user–friendly. The shaker is ideal for personal use.

MPS-1 features a head for vortexing a single tube.

Shaker can be used in cold rooms or incubators, operating at ambient temperature range +4°C to +40°C. Low voltage external power supply (12 V) provides electrical safety in humid environment.

MPS-1 features Pulse Mode mixing function that works on the principle of giving a periodic impulse: the tube is accelerated to the set speed, holds it for 3 seconds and then drops the speed to zero. This motion is repeated until the timer runs out. This method provides a constant state of resuspension of the particles inside a tube, as the acceleration is always changing. The advantage of this method is the high throughput of mixed samples compared to vortexing a single tube.


Speed control range 300–3,200 rpm
Smooth mixing with 3 mm orbit
Mixing presets
Pulse Mode mixing function
Quiet operation — low noise at maximum speed
High stability — stationary at maximum speed
Universal platform holder for Deepwell plates and Microtest plates
Additional platforms for semi- and unskirted PCR plates 200 μl as well as for tubes from 0.2 to 2 ml
Can be used in cold rooms or incubators (temperature range +4°C to +40°C)
