Orbital laboratory shaker PSU-2T

digitalfor ELISAfor immunoanalysis

Description

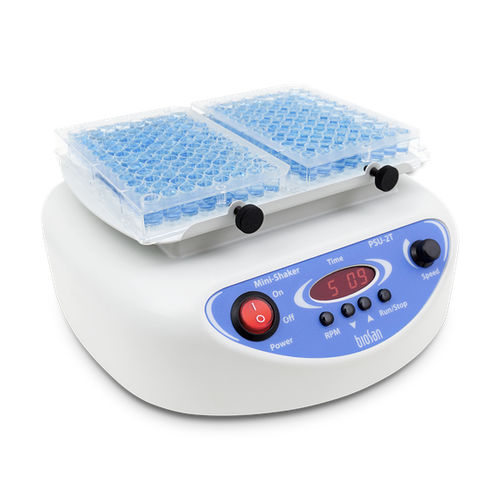

Mini-shaker PSU-2T is intended for immunoassays and enables adjustable mixing of reagents in microplates. The device provides smooth platform movement even at low speeds and supports continuous operation. Direct-drive with a brushless motor allows continuous mixing up to 168 hours and extended reliable operation. The display alternates between time and speed readings. The shaker is compact and designed for benchtop use at individual workstations.

Main features

• Designed for immunoassays and microplate reagent mixing
• Adjustable speed control with smooth platform movement at low speeds
• Direct drive with brushless motor for extended continuous operation
• Continuous mixing capability up to 168 hours (7 days)
• Compact, benchtop design for individual use
• Display toggles between time and speed
• Suitable for use in cold rooms or incubators (operating range +4°C to +40°C)

Accessories and variations

• Includes IPP-2 platform
• Optional platform IPP-4 (accessory: IPP-4, Cat. No. BS-010102-AK)
• Available variants / Cat. No.: BS-010155-AAG (230VAC 50/60Hz Euro plug), BS-010155-AAK (100–240VAC 50/60Hz multi-plug EU/UK/AU/US), BS-010155-AK (IQ OQ document), BS-010155-BK (PQ document)

Technical specifications

• Speed control range: 150–1,200 rpm
• Digital time setting: 1 min–24 hrs / non–stop
• Timer sound signal: yes
• Direct drive mechanism: yes
• Maximum continuous operation time: 168 h
• Digital setting and control of time and speed: yes
• Orbit: 2 mm
• Overall dimensions (W×D×H): 255×255×100 mm
• Weight: 2 kg
• Input current / power consumption: 12 V, 280 mA / 3.4 W
• External power supply: Input AC 100–240 V, 50/60 Hz; Output DC 12 V
