Rotameter LE902BT

Presentation
Rotameter is designed to assess rotational behaviour in rodents and is commonly used in studies of unilateral lesions of the nigrostriatal dopaminergic system, such as Parkinson disease models. The device confines the subject in a transparent container while recording left and right turns.

Operating principle

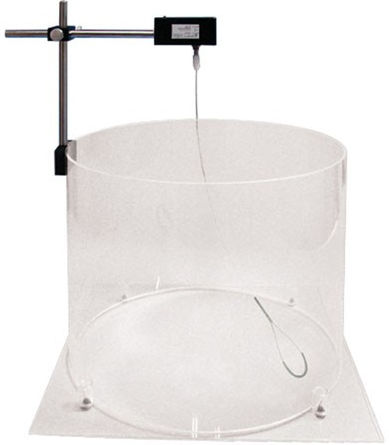

The subject is fitted with an adjustable Velcro harness attached to a rotation sensor via a flexible tether. A transparent cylinder or bowl with a lateral support for a vertical stand confines the animal. The bi-directional rotation sensor provides separate outputs for right and left turns and supports adjustable pulses-per-turn (4–36 pulses per complete turn). Two counting configurations are available: Individual Counter or Multicounter.

Counters (examples)
Individual Counter LE902CC vs Multicounter LE3806

Parameters Measured

• Number of partial and complete left and right turns
• Time-interval based data (user-defined intervals with Multicounter LE3806)

Key features

• Transparent cylinder or bowl containers
• Bi-directional rotation sensor with adjustable TTL output
• Configurable experiment duration and counting intervals
• Counting of partial and complete left/right turns
• Adjustable Velcro harness to fit mice and rats
• Optional data transfer software (SEDACOM 2.0) for Multicounter LE3806

Supplied with

• Rotation sensor and support
• Container (Bowl or Cylinder — to be specified when ordering)
• Animal harness (Rat or Mouse — to be specified when ordering)
• Counter (Individual or Multicounter — to be specified when ordering)
• Cables and connectors
• Instruction manual
• Hardware warranty: 2 years; Software warranty: 1 year

Technical specifications

• Reference: LE902BT
• Product name / commercial denomination: Rotameter
• Category: Activity, Motor Control & Coordination
• Rotation sensor: bi-directional, adjustable pulses-per-turn (4–36 pulses/turn)
• Output signal: TTL (adjustable)
• Containers: transparent Cylinder or Bowl (customer choice)
• Harness: adjustable Velcro harness available for mice and rats
• Counters: Individual Counter (LE902CC) or Multicounter (LE3806)
• Optional software: SEDACOM 2.0 (for Multicounter LE3806) for data visualization and export
• Measured parameters: partial and complete left/right turns; time-interval data with multicounter
• Price (excl. tax) shown on page: 0.00 EUR
• Warranty: Hardware 2 years; Software 1 year
