Research software BIO-CIS2

visualizationanalysisacquisition

Presentation
BIO-CIS2 is software designed to improve repeatability of nociceptive reflex tests by displaying force versus time in real time. It helps the operator identify and invalidate off‑limit results and supports transfer of raw data to Excel for further analysis.

Usage modes

• Run a predefined number of trials and later invalidate off‑limit results based on the recorded force ramp.
• Follow a theoretical ramp on screen in real time and individually select correct results to save.
• Import raw data directly from instruments into an Excel spreadsheet for sequential (pedal‑driven) or bulk analysis.

Operating principle

• After launching a preset or custom protocol, the application waits for sensor values above the start threshold.
• When force reaches the start threshold, the force/time curve is displayed in real time.
• Measurement stops when the experiment duration is reached or if force falls below the lower threshold set by the operator.
• At the end of measurement the operator can keep the recorded curve or erase and redo it; the MAX (peak) value is stored with date/time and animal/trial ID and can be exported in xls or txt formats.
• The software can superimpose force ramps to assess repeatability and includes save/load trial functions.

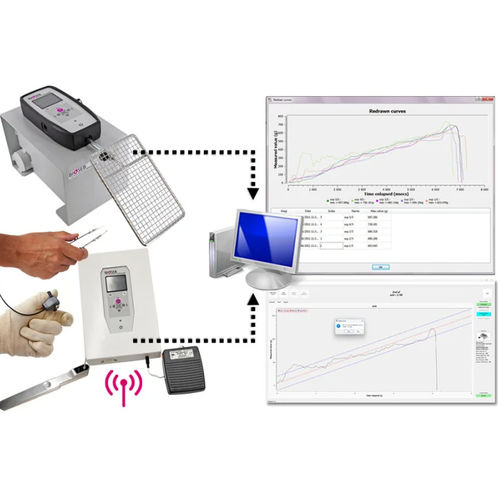

Connection

• Direct connection via standard RS232 DB9 serial port.
• Connection via USB serial converter for modern laptops (adapter can be provided).

Key features & benefits

• Compatible with Windows 7 (32/64 bit).
• Developed for multiple Bioseb instruments: Pincher Analgesimeter, Electronic Von Frey, Smalgo (small animal algometer), Grip Test, Static Weight Bearing Test.
• Real‑time force curve plotting and peak force determination.
• Definition and on‑screen display of a theoretical force/time ramp with upper/lower limits during measurement.
• Graphical overview by reloading and superimposing curves from a group of measures.
• Export results to Excel (xls) or txt: peak values or full measurement curves.
• Sequential (pedal) or bulk export of stored data to Excel; customizable Excel template.

Models

• BIO-CIS2 (software model)

Technical specifications

• Reference: BIO-CIS2
• Compatibility: Windows 7 (32/64 bit)
• Compatible instruments: Pincher Analgesimeter, Electronic Von Frey, Smalgo (small animal algometer), Grip Test, Static Weight Bearing Test
• Real‑time display: force vs time curves
• Measured outputs: peak (MAX) force, full force/time curves
• Data export: xls (Excel) and txt; sequential (pedal) or bulk import to Excel
• Connection interfaces: RS232 DB9 or USB serial converter
• Save/load trial functionality and ability to superimpose ramps for repeatability control
• Product added date: 2020-04-12
• Price (tax excl.): 0.00 EUR
