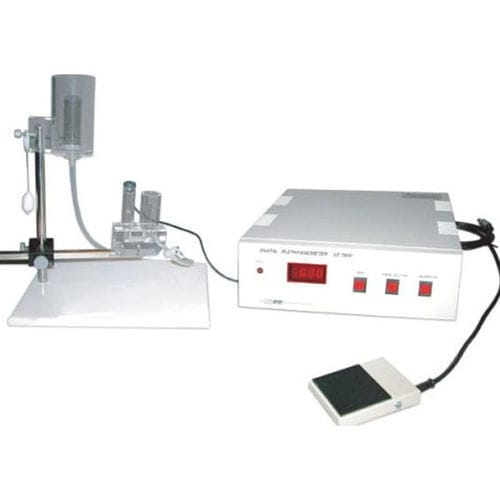

Animal research plethysmometer BX-PLETHY

for ratsfor rodentsfor mice

Presentation
The Digital Water Plethysmometer is an instrument for precise measurement of small volume changes in rodent paws. It is commonly used in preclinical inflammation and oedema studies to quantify paw volume variations and to screen anti-inflammatory or anti-oedema compounds.

Operating principle
The measuring assembly consists of two interconnected clear methacrylate tubes filled with a conductive solution and two platinum electrodes (one per chamber). Immersion of the animal paw displaces water from the measurement tube into the reference tube, changing conductance between the electrodes. The Control Unit detects conductance changes and displays volume displacement with 0.01 ml resolution. The device auto-zeroes between readings. A foot-switch enables hands-free start/stop control.

Key features

• Digital display with 0.01 ml resolution
• RS232 communication for PC interface
• Foot-switch control for hands-free operation
• Automatic zero adjustment
• Data transfer option via SeDaCom / SEDACOM 2.0 software

Supplied with

• Control Unit with RS232 port
• Pedal switch
• Stimulation unit
• 1 ml or 3 ml measuring cell
• SeDaCom software
• Instruction manual
• Certificate of calibration
• Cables and connectors
• 2 years warranty
• Set of two spare fuses

Options

• LE7000 thermal printer
• Measuring cell with electrode: 1 ml, 3 ml or 5 ml (order separately)

Parameters measured

• Mice paw volume (ml)
• Rat paw volume (ml)

Notes
Volume calibrators and spare measuring cells are available as accessories.

Technical specifications

• Control Unit dimensions: 280 (W) x 280 (D) x 110 (H) mm
• Stimulation Unit dimensions: 230 (W) x 220 (D) x 300 (H) mm
• Materials: Clear methacrylate (measuring cell), stainless steel (stand), platinum (electrodes)
• Number of animals: 1 per computer (multiple set-ups available on request)
• Power supply: 220V/110V, 50/60Hz
• Resolution: 3 digits, 0.01 ml steps
• Operation: panel key or pedal switch
• Applications: pain and inflammation research (paw oedema / volume changes)
