Class I microbiological safety cabinet A813

microbiologyinspectionfloor-standing

Description
Historic books, records, documents and collection objects can accumulate mould, dust and biological contaminants over decades. When handled for inspection, cleaning or conservation, these contaminants may be released as particles or spores.

Risks and protection
Released particles can be inhaled or spread across the workspace, posing risks to personnel and adjacent collections. Effective protection starts at the point of work: contaminants must be captured immediately at the source to protect staff and limit cross-contamination.

Product overview

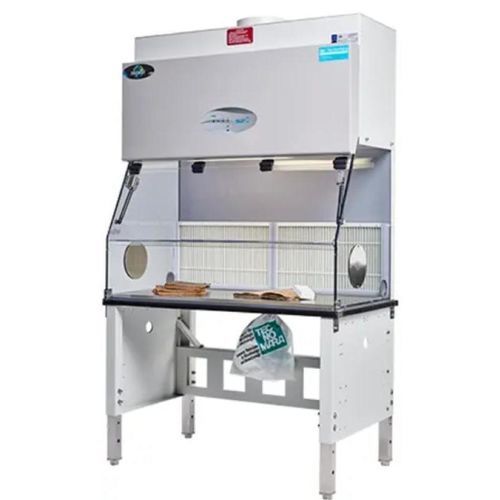

The NuAire Class I biological safety cabinet A813 Archive Version is engineered for safe handling of microbiologically contaminated archival materials. It provides reliable personnel and environmental protection by capturing and containing particles at the work aperture. TRBA 240 identifies Class I microbiological safety cabinets as an appropriate technical protective measure for work with contaminated archival items; their use may be required where the risk assessment indicates corresponding hazards.

Dimensions & key data
Nominal width: 1.2 m / 1.8 m
External dimensions W × D × H: 1219 × 737 × 1372 mm (1.2 m) ; 1829 × 737 × 1372 mm (1.8 m)
Interior dimensions W × D × H: 1178 × 610 × 711 mm (1.2 m) ; 1788 × 610 × 711 mm (1.8 m)
Minimum installation clearance: Door ≥ 800 mm; swing area approx. 1.50 m (1.2 m) / 2.05 m (1.8 m)
Working opening: 203 mm
Max. front window opening: 610 mm
Nominal inflow velocity: 0.40 m/s
Airflow rate: approx. 442 m³/h (1.2 m) ; approx. 663 m³/h (1.8 m)
Heat output: approx. 97 W (1.2 m) ; approx. 176 W (1.8 m)
Power consumption during operation: approx. 0.10 kW (1.2 m) ; approx. 0.18 kW (1.8 m)
Power supply: 230 V, 50/60 Hz
Total current consumption: 1.0 A (1.2 m) ; 1.3 A (1.8 m)
Power cable length: 3.6 m
Net weight: 181 kg (1.2 m) ; 227 kg (1.8 m)

Caractéristiques / spécifications techniques

• Product No.: 10000409
• Brand: NuAire
• Model: A813 Archive Version
• Nominal width options: 1.2 m; 1.8 m
• External dimensions (W × D × H): 1219 × 737 × 1372 mm (1.2 m) ; 1829 × 737 × 1372 mm (1.8 m)
• Interior dimensions (W × D × H): 1178 × 610 × 711 mm (1.2 m) ; 1788 × 610 × 711 mm (1.8 m)
• Minimum installation clearance: Door ≥ 800 mm; swing area approx. 1.50 m (1.2 m) / 2.05 m (1.8 m)
• Working opening: 203 mm
• Max. front window opening: 610 mm
• Nominal inflow velocity: 0.40 m/s
• Airflow rate: approx. 442 m³/h (1.2 m) ; approx. 663 m³/h (1.8 m)
• Heat output: approx. 97 W (1.2 m) ; approx. 176 W (1.8 m)
• Power consumption during operation: approx. 0.10 kW (1.2 m) ; approx. 0.18 kW (1.8 m)
• Power supply: 230 V, 50/60 Hz
• Total current consumption: 1.0 A (1.2 m) ; 1.3 A (1.8 m)
• Power cable length: 3.6 m
• Net weight: 181 kg (1.2 m) ; 227 kg (1.8 m)
