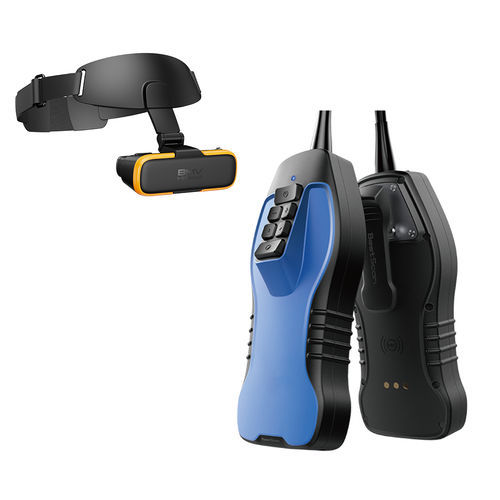

Portable veterinary ultrasound system BestScan S9 Series

multipurposefor sheepfor cattle

Overview
BestScan S9 Series comprises two veterinary ultrasound systems: S9 Ultra (dual wired/wireless) and S9 Pro (wired-only). Both models target bovine, equine and ovine reproductive examinations and equine tendon/limb assessments, combining AI-enhanced imaging, high-density probes and field-ready durability for mobile and clinic use.

Key capabilities

• AI-enhanced image processing for clearer tissue delineation and diagnostic support
• 192-crystal active array probes (linear/curved rectal options) for a range of depths
• 26 fps frame rate for smooth real-time imaging
• Clinical applications: pregnancy detection, fetal sexing, ovarian assessment, equine tendon and limb evaluation
• Rugged design: sealed dust/waterproof housing, 1 m drop resistance, flexible probe cables

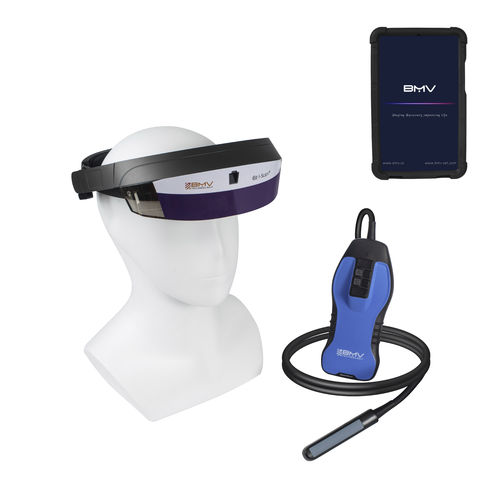

• S9 Ultra: dual wired/wireless connectivity, Android compatibility, I-Scan® goggles support, 12–14 h battery life for extended field rounds
• S9 Pro: wired-only reliability, 4–5 h runtime, optional Color Flow Mapping (CFM) add-on
• Adaptable to large mobile operations and fixed-clinic workflows

Technical specifications

• Series / Models: BestScan S9 Series — S9 Ultra (dual wired/wireless), S9 Pro (wired-only)
• Imaging enhancement: AI image processing, Tissue Harmonic Imaging
• Probes: broadband linear and curved rectal arrays; 192-crystal active arrays; frequency approx. 2–12 MHz depending on probe
• Channels / Grayscale / Frame rate: S9 Ultra 32 channels, S9 Pro 24 channels; 256 grayscale levels; 26 fps
• Max imaging depth: up to 31–35 cm depending on probe/model
• Connectivity: S9 Ultra dual wired/wireless (Android devices, I-Scan® goggles); S9 Pro wired-only
• Battery / Runtime: S9 Ultra 12–14 h; S9 Pro 4–5 h; rechargeable lithium batteries, DC/car charging
• Optional features: CFM add-on (S9 Pro)
• Manufacturer: BMV Animal Technology Co., Ltd.

Performance & imaging highlights

• Professional modes: B, M, harmonic imaging, panoramic focusing
• Advanced processing: frequency/space compounding, Rolling M, Real-time Dynamic Aperture
• High frame rate and probe sensitivity for fetal detail and tendon microstructure
• Specialised presets for reproductive workflows and equine musculoskeletal exams

Ruggedness & usability

• Sealed dust and water-resistant construction for easy field cleaning and biosecurity
• 1 m drop resistance, ABS+TPU housing and flexible probe cables
• Ergonomic form factor with anti-slip grip and simple key controls for blind or gloved operation

Accessories & expandability

• Standard: main unit with rechargeable battery and app software, linear/curved rectal probes, belt, power adapter, user manual, carry case
• Optional: I-Scan® smart goggles, rectal probe introducer, mounting accessories, field bag, power bank, car charger; CFM module for S9 Pro

Applications & deployment

• Designed for large farms, mobile veterinary services and multi-site practices (S9 Ultra) and for fixed clinics or budget-conscious operations (S9 Pro)
• Targets reproductive management, on-farm pregnancy checks, fetal sexing and equine tendon monitoring
