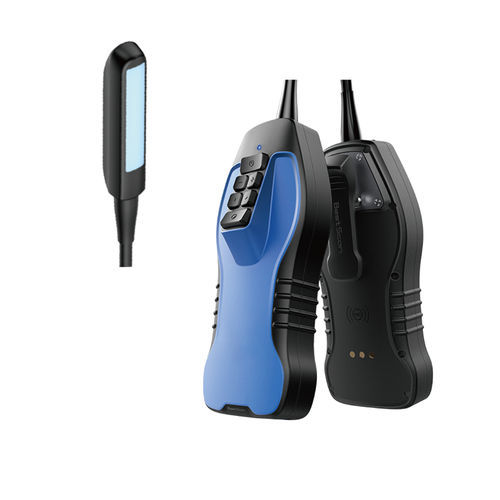

Portable veterinary ultrasound system S9 series

multipurposefor sheepfor cattle

Product Overview
BestScan S9 Series includes two veterinary ultrasound systems: S9 Ultra (dual wired/wireless) and S9 Pro (wired-only). Both feature AI-enhanced image processing, 192-crystal array probes and a 26 fps frame rate. The series is designed for reproductive imaging (pregnancy detection, fetal sexing, ovarian assessment) and equine musculoskeletal diagnostics (tendon, limb, joint, eye) with farm-ready sealing, 1 m drop resistance and flexible probe cables. S9 Ultra prioritises mobility and extended battery life; S9 Pro prioritises wired reliability and cost-effective deployment.

Core Product Advantages

• Differentiated Connectivity for Targeted Workflows
  • S9 Ultra (Dual Wired/Wireless): Cable-free wireless operation for mobile vets and wired mode for stable diagnostics; wireless compatible with Android devices and I-Scan® smart goggles for hands-free viewing.
  • S9 Pro (Wired-Only): Simple, reliable wired connection for fixed clinics or budget-conscious deployments.
• AI-Enhanced Imaging & Precision
  • Advanced Image Quality: 192-crystal probes, 256 grayscale levels, AI-driven processing, improved penetration and wide field view; 26 fps reduces motion lag during probe sweeps.
  • Professional Modes: B/M modes, panoramic imaging, frequency compounding, Tissue Harmonic Imaging; S9 Pro supports B/B/M/Color/PDI/PW with optional Color Flow Doppler Mapping (CFM).
  • Clinical Focus: Optimised for reproductive exams and equine tendon/limb/joint/eye assessments with high accuracy for late-pregnancy diagnostics.
• Rugged Farm-Ready Durability
  • Sealed Design: Dust/water-resistant sealed construction for field biosecurity and easy cleaning.
  • Impact & Wear Resistance: 1 m drop resistance, ABS+TPU housing and flexible probe cables for daily farm use.
  • Ergonomics: Compact dimensions (example 185x80x35 mm), lightweight handling (~650 g Ultra / ~680 g Pro), anti-slip grips and belt for hands-free carry.
• Tiered Performance & Scalability
  • S9 Ultra (Flagship): 32-channel platform, long-life lithium battery (noted 12–14 hours), broadband rectal linear/curved probes (active array 64 mm), max depth up to 31 cm; dual connectivity for large farms and mobile workflows.
  • S9 Pro (Wired): 24-channel configuration, broadband rectal probes (active array 55 mm), optional CFM module for vascular imaging; wired architecture for stable, low-maintenance use.

Specification Table
Specification Category — S9 Ultra (Dual Wired/Wireless) — S9 Pro (Wired-Only)
Product Model — BestScan S9 Ultra Veterinary Ultrasound — BestScan S9 Pro Veterinary Ultrasound
Core Functions — Reproductive imaging (pregnancy detection, fetal sexing, ovarian evaluation), equine musculoskeletal diagnostics (tendon/limb/joint/eye), abdominal/chest assessment — Same as S9 Ultra
Target Animals — Bovine, equine, ovine, swine — Bovine, equine, ovine, swine
Connectivity — Dual wired/wireless; wireless with Android/I-Scan® goggles; wired for stability — Wired-only; straightforward connection
Probe Specifications — Broadband linear rectal (active array 64 mm Ultra / 55 mm Pro), broadband rectal curved array; 192 crystal array; 2–11/2–12 MHz — Same types with model-specific active lengths
Imaging Technology — B/M modes, AI processing, Tissue Harmonic Imaging, panoramic focusing, frequency/space compounding, Rolling M, Real-time Dynamic Aperture — Same advanced technologies
Imaging Parameters — Channels: 32 (Ultra) / 24 (Pro); Grayscale: 256; Frame rate: 26 fps; Max depth: 31–35 cm depending on config
Battery — Lithium rechargeable; working time noted 12–14 hours (table); S9 Pro runtime variably reported 4–5 hours in some texts; charging via DC adapter/car 12V socket
Durability — Sealed dust/waterproof; 1 m drop-proof; ABS+TPU; flexible probe cables — Same as S9 Ultra
Accessories — Standard: main unit, rectal probes (linear/curved), belt, power adapter, user manual, suitcase; Optional: I-Scan® goggles, probe introducer, mounts, field bag, power bank, car charger, CFM module (optional for Pro)

Technical Specifications

• Series: BestScan S9 Series — S9 Ultra (dual wired/wireless) & S9 Pro (wired-only)
• Manufacturer: BMV Animal Technology Co., Ltd.
• Target animals: Bovine, equine, ovine, swine
• Clinical applications: Reproductive imaging, equine tendon/limb/joint/eye diagnostics, abdominal/chest assessment
• Probe array: 192 crystal array
• Probe types: Broadband linear rectal (active array 64 mm Ultra / 55 mm Pro) and broadband rectal curved array
• Frequency: ~2–11 MHz (Ultra) / 2–12 MHz (Pro)
• Channels: Ultra 32; Pro 24
• Grayscale levels: 256
• Frame rate: 26 fps
• Max depth: up to 31–35 cm depending on configuration
• Imaging modes: B, M, B/M, panoramic, frequency compounding, Tissue Harmonic Imaging, Rolling M, Real-time Dynamic Aperture; optional CFM
• Battery & charging: Lithium rechargeable; typical 12–14 h noted; DC adapter and car 12V charging
• Construction: Sealed dust/waterproof; 1 m drop-proof; ABS+TPU; flexible probe cables
• Ergonomics: Compact 185x80x35 mm (reference); weights ~650 g (Ultra) / ~680 g (Pro)
• Operation: Blind operation support; 6 function keys (gain, depth, freeze); separate freeze button; companion APP
• Accessories: Standard and optional items as listed above
