Thermal transfer printer I7100600P-UKLABVLA

labellaboratory

Product Overview

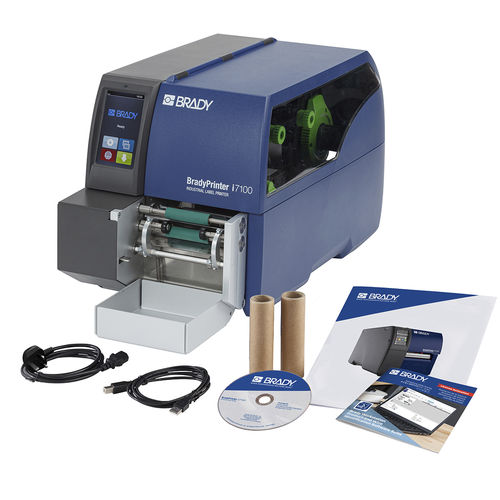

The BradyPrinter i7100 industrial thermal transfer benchtop printer is designed for high-volume, reliable printing across laboratory and healthcare workflows. It supports accurate printing on sleeves, tags, labels, tapes, cable markers and vial labels, and can be configured with a peel function and a vial label applicator for automated vial labelling in laboratory environments.

Key Benefits

• Prints on a very wide range of materials, including difficult-to-print substrates relevant to laboratory and medical environments.
• Included vial label applicator prints and applies labels to vial tubes in seconds, accelerating laboratory sample processing.
• Peel configuration automatically peels labels from the liner for fast manual or automated application.
• High-precision printing on labels as small as 4 mm for clear identification of small samples.
• Built for continuous, high-volume production — capable of printing thousands of labels per day.
• Easy-to-use colour touchscreen for quick adjustment of settings and job control.
• Ships with Brady Workstation Product Software; optional Wire ID Software Suite offers additional templates for fixed-text and free-form label design.

Key Features

• Continuous vs Die Cut Labels: Bulk, Continuous, Custom, Die-cut.
• Application(s): Laboratory labelling, vial and sample identification.
• Colour Capability: Monochrome.
• Max. Label Width: 56.00 mm.
• Print Technology: Thermal Transfer.
• Recommended Usage per Day: 7000 labels (typical estimate).
• Resolution: 600 dpi.
• Stand Alone Printing: Supports stand-alone and peripheral operation modes.

Key Characteristics (table)
Article Number: 307655
Order Reference: I7100-600-P-UK-VLA
Total Qty per Pack: 1 Kit / Box
Minimum Order Quantity: 1
Application(s): Laboratory labelling
Quantity: 1
Brand: Brady®
Country of Origin: Germany

Dimensions (table)
Size - Width (mm): 252.00 mm
Size - Height (mm): 288.00 mm
Size - Depth (mm): 520.00 mm
Weight (kg): 12.00 kg
Minimum Label Height (mm): 12.00 mm
Min. Label Width (mm): 10.00 mm
Dimensions (W x H x D): 252.00 mm x 288.00 mm x 520.00 mm

Material Characteristics (table)
Materials Supported: Diesel-resistant Heat-shrink Polyolefin Sleeve; Direct Thermal Paper; FreezerBondz™ Polyester; Heat-shrink Polyolefin; High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve; Metallic; Non-metal Polyester; Metallised Polyester; Metallised Polyester with Polyester Overlaminate; Nylon Cloth; Paper; Polyester; Polyester with Polyester Overlaminate; Polyethylene Foam Laminate Polyester; Polyimide; Polyolefin; Polypropylene; Polyvinylfluoride; Repositionable Paper; Self-laminating Polyester; Self-laminating Vinyl; StainerBondz™ Polyester; Static Dissipative Polyester; Tamper-evident Metallised Polyester; Tamper-evident Polyester; Tamper-resistant Metallised Vinyl; Tamper-resistant Vinyl; Vinyl; Vinyl Cloth; Water-indicating Polyester/Paper Laminate

Product Features (table)
Battery Type: Lithium-manganese Battery
Battery Weight (metric): 3.000
Language Support: Arabic (Egypt), Bulgarian, Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Lithuanian, Macedonian, Norwegian (Bokmål), Persian (Farsi), Polish, Portuguese, Romanian, Russian, Serbian, Slovenian, Spanish, Swedish, Turkish
Connectivity Options: Bluetooth (optional), Ethernet, I/O connection, Serial, USB, Wi‑Fi (optional)
Display Type: Colour Touchscreen
Internal Memory Capacity: 256 MB RAM, 50 MB IFFS Flash, SD card up to 512 GB
Barcode Symbologies: Codabar (NW-7), Code 128, Code 39, Code 93, GS1-128, EAN/UPC family, GS1 DataBar family, Interleaved 2 of 5, MSI, POSTNET, Aztec, Data Matrix (including GS1 DataMatrix), MaxiCode, MicroPDF417, PDF417, QR code, Codablock F
Operating Humidity Range: 10%-80% (non-condensing)
Operating System Compatibility (drivers): Windows® 7, 8, 10; Windows® Server 2012, Server 2012 R2, Server 2016
Operating Temperature: 5°C - 40°C
Stand Alone Printing: Stand-alone & Peripheral (printer can operate independently or be controlled by a host application)
Power Source: AC Adaptor
Power Supply Voltage: 110 V
Storage humidity: 20%-85% (non-condensing)
Storage Temperature: 0°C - 60°C

Printing Specifications (table)
Print Technology: Thermal Transfer
Print Speed (mm/sec): 150.00 mm/s
Colour Capability: Monochrome
Resolution (dpi): 600 dpi
Max. Label Width (mm): 56.00 mm
Max. Liner Width (mm): 60.00 mm
Recommended Usage per Day: 7000 (estimate)
Max. Print Width (mm): 56.00 mm
Max. Print Length (mm): 102.00 mm
Max. Roll Outer Diameter (mm): 205.00 mm
Maximum Label Thickness (mm): 1.00 mm
Font Styles: Bitmap default fonts (12x12, 16x16, 16x32), Monospace 821, OCR-A, OCR-B, Swiss 721 and Swiss 721 Bold
Hours of Operation: 24/7 (design capability)
On Screen Indicators: Bluetooth Status, Data Reception, Data Recording, Digital Clock, Ethernet Status, Ribbon Remaining, SD Memory Card Inserted, Supply Remaining, USB Memory Stick Inserted, USB Slave Status, WLAN Field Intensity
Min. Label Width (mm): 10.00 mm
Programming Language: abc Basic Compiler, Database Connector, Jscript, SAP Integration, ZPL Emulator

Compatibility (table)
Continuous vs Die Cut Labels: Bulk, Continuous, Custom, Die-cut
Software Compatibility: Brady Workstation, Windows-based driver for 3rd party software use
B-numbers supported (media): multiple B- series supported (examples listed on product documentation)
Compatible Media Series Prefix: THT-

What's Included (table)
This i7100 printer ships with the Peel and Present module pre-installed. Contents: vial label applicator, UK power cord, Brady Workstation Basic Suite, 2 empty ribbon cores, USB cable, product CD with driver, user manual in multiple languages, configuration/settings manual in English, printed user manual in English.
Warranty: 2 years

Compliance (table)
UNSPSC: 45101519
RoHS Compliance Status: Compliant with 2011/65/EU with exemptions
REACH SVHC Status: Part contains an SVHC
REACH Candidate List Date: 04 February 2026
Approvals/Compliance: CCC, CE, FCC class A, UL (where applicable)
Printer shipped-to geography: multiple EMEA countries (see product distribution channels/documentation).
