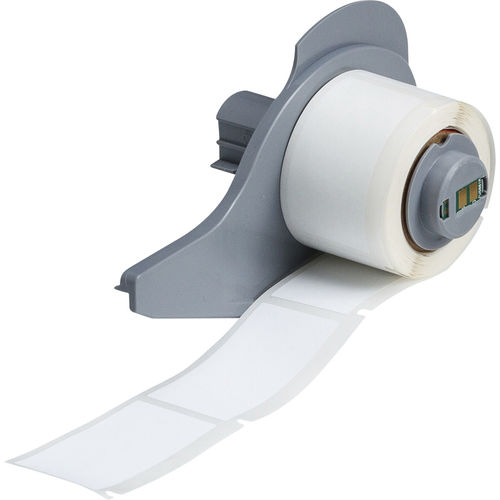

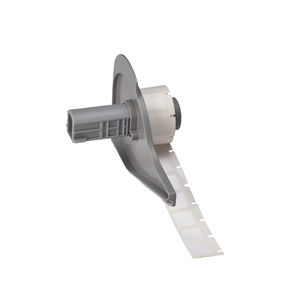

Tube label roll M71-20-351

Product Overview
Destructible, tamper-evident vinyl labels supplied blank for thermal transfer printing with BMP71-compatible systems. Material corresponds to Brady® B-351 (UL Recognised Component, CSA accepted when printed with designated laser toners). Ideal for applications requiring irreversible tamper indication.

Key Features

• Printer compatibility: BMP71
• Dimensions: 25.40 mm (W) × 50.80 mm (H)
• Material: Tamper-resistant/destructible vinyl
• Colour & finish: White, matt
• Adhesive: Permanent acrylic
• Label properties: Tamper-evident (fractures easily), heat resistant, abrasion- and fuel/oil-resistant

Specifications

• Part / Order reference: M71-20-351
• Brady® Material No.: B-351
• Article number: 114773
• Quantity per pack: 100 labels / box (100 per roll)
• Qty per row: 1
• Qty per roll: 100
• Recommended ribbon series: M71-R6200 (M71-R6000HF series compatible)
• Country of origin: Mexico

Dimensions

• Label width: 25.40 mm
• Label height: 50.80 mm
• Core diameter: 25.40 mm
• Vertical repeat: 53.98 mm
• Web width: 33.32 mm

Material Characteristics

• Material type: Tamper-resistant vinyl (Brady® B-351)
• Thickness: 0.071 mm
• Application temperature (min): 10 °C
• Service temperature range: -40 °C to 80 °C
• Adhesive: Permanent acrylic
• Surface suitability: Smooth and textured/rough surfaces
• Performance: Tamper-indicating, abrasion-resistant, fuel/oil-resistant, low-temperature resistant

Printing Specifications

• Printer compatibility: BMP71
• Max characters per line: 46
• Max lines of text: 10
• SmartCell: Yes

Applications

• Laboratory labelling (general identification, seals)
• Security identification and tamper seals
• Asset tagging where irreversible tamper evidence is required

Compliance

• UL file: MH17154 (material recognition)
• CSA Acceptance Record: LS41833 (when printed with designated laser toners)
• UNSPSC: 55121612
• RoHS: Compliant with 2011/65/EU (with exemptions)
• REACH SVHC: Part does not contain an SVHC (candidate list date: 10 June 2022)

Notes
Product supplied on rolls/boxes of 100 labels. The material is designed to fracture to provide tamper evidence and to prevent one-piece removal; consult Brady® technical data sheet B-351 for detailed chemical and application guidance.
