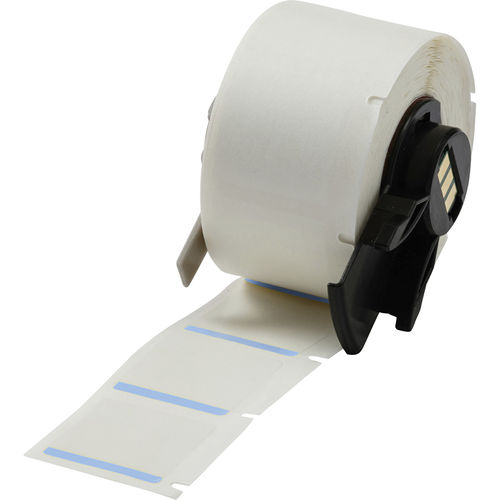

Vial label M61-17-494-BL

for tubescryogenicchemical-resistant

Description
Our Brady B-494 polyester label provides a reliable sample identification and traceability solution for laboratory and cold-storage applications. The label remains attached and legible after exposure to chemicals and during cryogenic storage. Subsurface printing protects the colour code from fading, smearing and smudging to ensure long-term, fast sample recognition.

Key features

• Printer compatibility: BMP61 (equivalent for M610/M611)
• Label dimensions (W x H): 25.40 mm x 12.70 mm
• Printable area (W x H): 25.40 mm x 9.53 mm
• Material: Polyester (Brady material no. B-494)
• Colour: Blue, White
• Finish: Gloss
• Label properties: Chemical resistant; Low temperature / Cryogenic compatible
• Qty per pack: 500 labels / box

Product details
Article number: 150086; Order reference: M61-17-494-BL; Total qty per pack: 500 labels; Minimum order quantity: 1; Qty per row: 1; Vial/tube suitability: 8.0 mL.

Dimensions

• Size - Width (mm): 25.40
• Size - Height (mm): 12.70
• Core diameter (mm): 25.40
• Vertical repeat (mm): 15.88
• Web width (mm): 33.32
• Printable area - Width x Height (mm): 25.40 x 9.53

Material characteristics

• Brady material no.: B-494
• Material type: Polyester
• Thickness (mm): 0.0762
• Max service temp: 70 °C
• Min service temp: -196 °C
• Adhesive: Permanent acrylic

Printing specifications
SmartCell: Yes; Recommended ribbon: M61-R6410.

Compatibility
Printer compatibility: BMP61 (equivalent for M610/M611).

Preprinted information
Pre-printed area: solid colour stripe.

Compliance
UNSPSC: 55121612; RoHS: Compliant with 2011/65/EU (with exemptions); REACH SVHC: Part does not contain an SVHC (candidate list date: 10 June 2022).

Equivalents / replacement
Equivalent for M610 and M611 printers: M6-17-494-BL.

Technical specifications

• Brand: Brady
• Material: Polyester
• Order ref / Part no.: M61-17-494-BL
• Article number: 150086
• Label size: 25.40 x 12.70 mm
• Printable area: 25.40 W x 9.53 H mm
• Thickness: 0.0762 mm
• Qty per pack: 500 labels
• Temperature range: -196 °C to 70 °C
• Properties: Chemical resistant, cryogenic compatible
• Recommended ribbon: M61-R6410
