Optical microscope Science IVM 401
laboratoryeducationmedical

optical microscope
optical microscope
optical microscope
optical microscope
optical microscope
optical microscope
optical microscope
Add to favorites
Compare this product


Characteristics

Type
optical
Applications
laboratory, education, medical
Ergonomics
inverted
Microscope head
trinocular
Observation technique
phase contrast
Light source
halogen
Configuration
benchtop
Magnification

Min.: 100 unit

Max.: 400 unit

Weight

11.5 kg
(25.4 lb)

Length

485 mm
(19.1 in)

Width

270 mm
(10.6 in)

Height

465 mm
(18.3 in)

Description

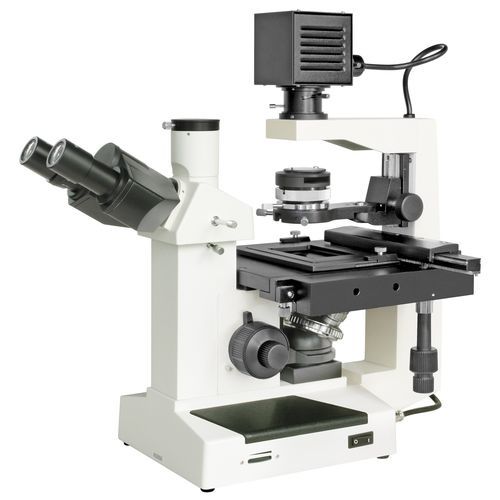

At the BRESSER Science IVM 401, the usual direction of illumination and observation is inverted: One illuminates the sample from above and observes it from below. This type allows for the microscopy of sediments and transparent living organisms, which are found at the bottom of a liquid medium. For example, plankton or protozoa at the ground of culture bottles, which should not turned over, can be investigated. So, this special microscope is suitable for public water departments, research institutes and universities, for medical treatment, animal husbandry, agriculture, limnology etc. The Science IVM 401 has a large fixed object plate with stage moving system, a powerful halogen bulb illumination (30 W) with dimmer and field diaphragm, and a fourfold nosepiece. The trinocular head is turnable and bears 30° inclined eyepiece tubes and a photo tube. There are eye relief adjustment and diopter adjustment, as well as coaxial coarse and fine focusing knobs. As accessories, which are available on request, you have a big choice: Wide field eyepieces (WF10x, WF16x), planachromatic DIN objectives (10x, 25x, 40x), planachromatic DIN phase contrast objectives with annular diaphragm (10x, 25x, 40x), condenser (working distance 30 mm; with phase contrast), condenser (working distance 70 mm), different filters (blue, green, ground glass) and specimen holders for rectangular or round culture utensils. FEATURES Type: Inverted microscope View: Trinocular Application range: Biology, Research, Laboratory, Medical science, Education, Teaching, Veterinary medicine, Agriculture, Limnology, In vitro fertilisation Illumination: Halogen Level: Intermediate, Expert Warranty: 2 years
