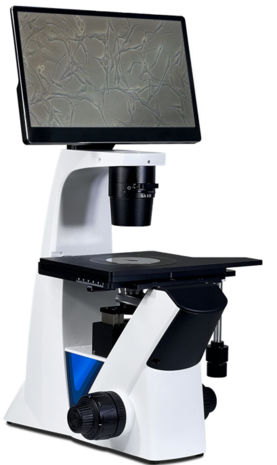

Optical microscope DTLM

laboratorybinocularachromatic

Anyone in the lab can correctly set up contrast methods with the interactive guided feature. The, integrated, simple and user-friendly software makes it easy to view and capture sample images. BMS DTLM reduces the training workload for technicians, supervisors, and researchers. For cell culture work in regulated environments, it is easy to install and qualify BMS DTLM. Once set up, you can use it immediately, ensuring consistent and reliable results from the beginning. Smart working: USB memory to store your images and video USB video output to connect directly to your PC Footswitch to grab images or video 4K video recording HMDI output for extra screen embedded software in the camera BMS DTLM Eyepieces: EWF10x/20mm Head: binocular with adjustment of the interpupillary distance and dioptric compensation Nosepiece: quadruple Objectives: L-Plan DIN achromatic PH10x/0.25/WD5.8, 20x/0.65/WD8,36 and 40x/0.7/WD1,39 Focusing: coaxial course and fine focussing knobs on both sides Stage: built-in moveable specimen holder of 180x155mm, x and y movement with coaxial knobs. The X axis is 75mm and the Y axis is 50mm. flasks and matrasses can be fitted to the table Condenser: in centrable holder, adjustable in height through rack and pinion, with iris diaphragm, for long working distance Illumination: built in, adjustable LED illumination. Photo/video applications: horizontal tube for photo and video recording, which allows reflex cameras and C-mount cameras to be used with special adapters
