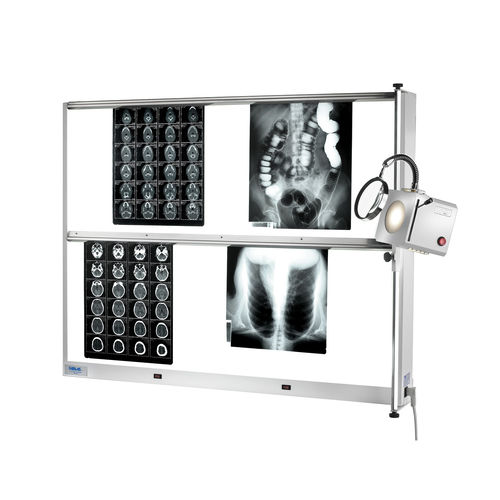

2-screen X-ray film viewer / white light
90 x 86 / 120 x 86 / 150 x 86 / 180 x 86

{{requestButtons}}

Characteristics

  • Number of screens:

    2-screen

  • Other characteristics:

    white light

Description

X-ray film viewer standard series horizontal

Stove enamelled steel structure thickness 0,8 mm;
Fire epoxy painting colour peel RAL 9010, upon structure cleaning treatment;
Smelted opaline acrylic screen thickness 3 mm inserted into the structure;
Neon tubes of 6.000°Kelvin (other type of tubes available on request);
Upper and/or central pressing rolls film holding system;
Bipolar switches on the front (on request is possible apply other type of switches and their position);
External fuses lagging type 5×20 (positioned on the bottom right side);
Feeding cable complete with plug and earth “Italian” type 180 long (other type of plugs on request);
Arranged for wall mounting installation through expansion dowels;
Integrable with other optional devices like: lateral support for spot viewers and/or magnifying lens, trolley on wheels, light intensity regulator.
X-ray film viewer conforms to Directive 93/42/CEE – Medical Devices – Class 1

Moreover meets the Directive 73/23 CEE (Low tension) 89/336 CEE (Electromagnetic compatibility).

Construction conforms to Norms EN 60601 -1,2 / Din 6856 -1,2;

Feeding 230V / 50Hz + earth;
Maintenance: recurrent cleaning (each 6 months) of the whole screen;
