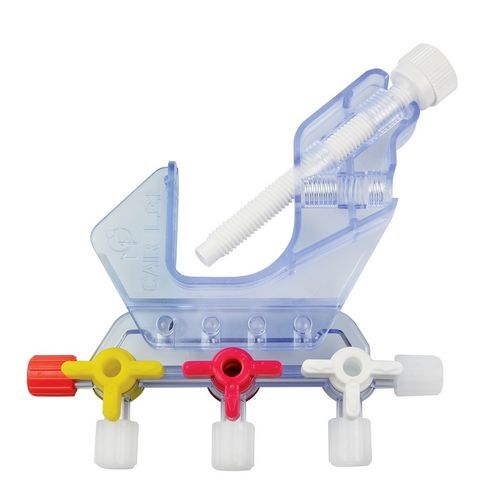

2-way infusion manifold RP series

4-way3-way5-way

Product name
Manifolds with holder (RP series) for infusion applications — 2 to 6 stopcocks; optional male/male extension line available in 50, 100, 150 or 200 cm.

Product table
Reference | Description | Female ports | Extension tubing length (cm) | Inner box qty. | Outer box qty.
RP2000A | 2 stopcocks manifolds with holder | 4 | - | 50 | 200
RPB2305A | 2 stopcocks manifolds with holder and male/male extension line | 4 | 50 | 20 | 160
RPB2310A | 2 stopcocks manifolds with holder and male/male extension line | 4 | 100 | 20 | 160
RPB2315A | 2 stopcocks manifolds with holder and male/male extension line | 4 | 150 | 20 | 160
RPB2320A | 2 stopcocks manifolds with holder and male/male extension line | 4 | 200 | 20 | 60
RP3000A | 3 stopcocks manifolds with holder | 5 | - | 50 | 200
RPB3305A | 3 stopcocks manifolds with holder and male/male extension line | 5 | 50 | 50 | 160
RPB3310A | 3 stopcocks manifolds with holder and male/male extension line | 5 | 100 | 20 | 160
RPB3315A | 3 stopcocks manifolds with holder and male/male extension line | 5 | 150 | 20 | 160
RPB3320A | 3 stopcocks manifolds with holder and male/male extension line | 5 | 200 | 20 | 60
RP4000A | 4 stopcocks manifolds with holder | 6 | - | 50 | 200
RPB4305A | 4 stopcocks manifolds with holder and male/male extension line | 6 | 50 | 15 | 120
RPB4310A | 4 stopcocks manifolds with holder and male/male extension line | 6 | 100 | 15 | 120
RPB4315A | 4 stopcocks manifolds with holder and male/male extension line | 6 | 150 | 15 | 120
RPB4320A | 4 stopcocks manifolds with holder and male/male extension line | 6 | 200 | 15 | 120
RPB5310A | 5 stopcocks manifolds with holder and male/male extension line | 7 | 100 | 15 | 120
RPB5315A | 5 stopcocks manifolds with holder and male/male extension line | 7 | 150 | 15 | 120
RPB5320A | 5 stopcocks manifolds with holder and male/male extension line | 7 | 200 | 15 | 120
RP6000A | 6 stopcocks manifolds with holder | 8 | - | 10 | 160
RPB6305A | 6 stopcocks manifolds with holder and male/male extension line | 8 | 50 | 15 | 120
RPB6310A | 6 stopcocks manifolds with holder and male/male extension line | 8 | 100 | 15 | 120
RPB6320A | 6 stopcocks manifolds with holder and male/male extension line | 8 | 200 | 15 | 120

Regulatory information
MD class: IIa. CE 0459. Please read the instructions for use prior to use.

Characteristics / technical specifications

• Product family: Manifolds with holder for infusion applications (2 to 6 stopcocks).
• References / variants: RP2000A; RPB23xx series; RP3000A; RPB33xx series; RP4000A; RPB43xx series; RPB53xx series; RP6000A; RPB63xx series.
• Female ports: model-dependent (4, 5, 6, 7 or 8).
• Extension tubing lengths (for variants with extension): 50, 100, 150, 200 cm.
• Packing: inner box and outer box quantities vary by reference (see table).
• Intended use: infusion manifold / multi-way stopcock assemblies.
• Notes: Medical device class IIa, CE marked (0459). Consult instructions for use before use.
