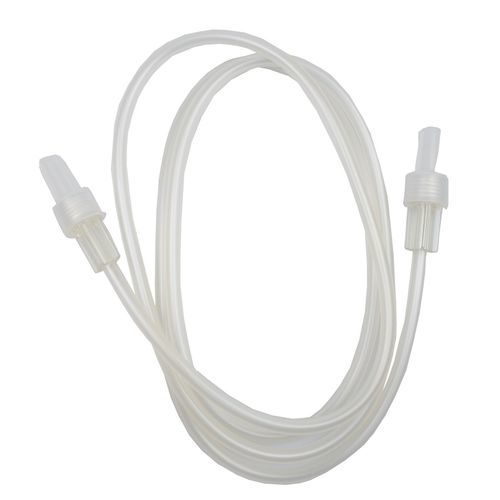

Infusion extension line PB1 series

Product overview
Coextruded polyethylene (PE)/polyvinyl chloride (PVC) extension lines with male/male connectors for infusion applications. PB series extension lines intended for fluid transfer between infusion sets and devices; compatible with standard male connection systems.

Variants table
Reference with fixe ring | Reference with mobile ring | Reference with Cair-Swing rotative ring | Diameter (mm) | Length (cm) | Inner box qty. | Outer box qty.
PB1115 | PB115M | - | 1 x 2.5 | 150 | 40 | 640
PB1130 | - | - | 1 x 2.5 | 300 | 40 | 640
PB1220 | - | - | 1.5 x 3 | 200 | 40 | 640
PB1302 | - | - | 2.5 x 4.1 | 25 | 40 | 640
PB1305 | - | - | 2.5 x 4.1 | 50 | 25 | 400
PB1310 | - | - | 2.5 x 4.1 | 100 | 25 | 400
PB1315 | - | - | 2.5 x 4.1 | 150 | 25 | 400
PB1320 | - | - | 2.5 x 4.1 | 200 | 25 | 400
PB1340R | - | - | 2.5 x 4.1 | 400 | 15 | 240
PB1380R | - | - | 2.5 x 4.1 | 800 | 30 | 120

Regulatory / Instructions
Medical device classification: Class IIa. CE 0459. Refer to the instructions for use supplied with the product before clinical use.

Technical characteristics / specifications

• Material: coextruded polyethylene (PE) / polyvinyl chloride (PVC).
• Connector configuration: male/male.
• Intended use: extension lines for infusion systems.
• Available diameters: 1 x 2.5 mm; 1.5 x 3 mm; 2.5 x 4.1 mm (see variants).
• Available lengths (cm): 25; 50; 100; 150; 200; 300; 400; 800 (depending on reference).
• Packaging: inner box and outer box quantities vary by reference (see variants table).
• Product family: PB series extension lines for infusion applications.
