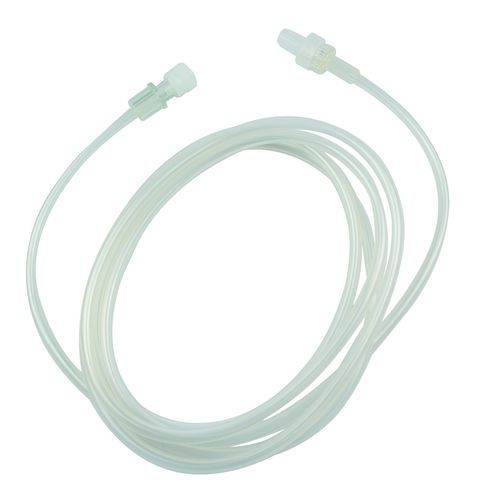

Infusion extension line PN3 series

Product
PVC male/female extension lines for infusion applications. Medical Device Class IIa, CE 0459. Please read the instruction for use.

Reference table
Reference Fixe ring | Reference mobile ring | Diameter (mm) | Length (cm) | Inner box qty. | outer box qty.
PN3102 | PN3102M | 1 x 2,5 | 25 | 40 | 640
PN3105 | PN3105M | 1 x 2,5 | 50 | 40 | 640
PN3110 | PN3110M | 1 x 2,5 | 100 | 40 | 640
PN3110 | PN3110M | 1 x 2,5 | 150 | 40 | 640
PN3120 | PN3120M | 1 x 2,5 | 200 | 40 | 640
PN3130 | - | 1,5 x 3 | 300 | 25 | 400
PN3202 | PN3202M | 1,5 x 3 | 25 | 25 | 400
PN3205 | PN3205M | 1,5 x 3 | 50 | 25 | 400
PN3210 | PN3210M | 1,5 x 3 | 100 | 40 | 640
PN3215 | PN3215M | 1,5 x 3 | 150 | 40 | 640
PN3220 | PN3220M | 1,5 x 3 | 200 | 40 | 640
PN3202 | PN3202M | 1,5 x 3 | 25 | 25 | 25
PN3205 | PN3205M | 1,5 x 3 | 50 | 25 | 25
PN3210 | PN3210M | 1,5 x 3 | 100 | 100 | 40
PN3215 | PN3215M | 1,5 x 3 | 150 | 150 | 40
PN3220 | PN3220M | 1,5 x 3 | 200 | 200 | 40
PN3240M | - | 1,5 x 3 | 300 | 25 | 400
PN3301 | PN3301M | 1,5 x 3 | 10 | 25 | 400
PN3302 | PN3302M | 2,5 x 4,1 | 25 | 40 | 640
PN3305 | PN3305M | 2,5 x 4,1 | 50 | 40 | 640
PN3307 | - | 2,5 x 4,1 | 75 | 40 | 640
PN3310 | - | 2,5 x 4,1 | 100 | 40 | 640
PN3310M | PN3310M | 2,5 x 4,1 | 100 | 40 | 640
PN3315 | PN3315M | 2,5 x 4,1 | 150 | 25 | 400
PN3320 | PN3320M | 2,5 x 4,1 | 200 | 25 | 400

Regulatory information
Medical Device Class IIa, CE 0459. Please read the instruction for use.

Characteristics / technical specifications

• Material: PVC (polyvinyl chloride)
• Connector type: male / female extenders
• Multiple commercial references available (examples): PN3102, PN3105, PN3110, PN3120, PN3130, PN3202, PN3205, PN3210, PN3215, PN3220, PN3301, PN3302, PN3305, PN3310, PN3315, PN3320 (see reference table above for full mapping)
• Diameter options (mm): 1 x 2,5 ; 1,5 x 3 ; 2,5 x 4,1
• Length options (cm): ranges shown in table (10, 25, 50, 75, 100, 150, 200, 300)
• Packaging: Inner box and outer box quantities vary by reference (see table above)
• Regulatory class: Medical Device Class IIa, CE marked (0459)
