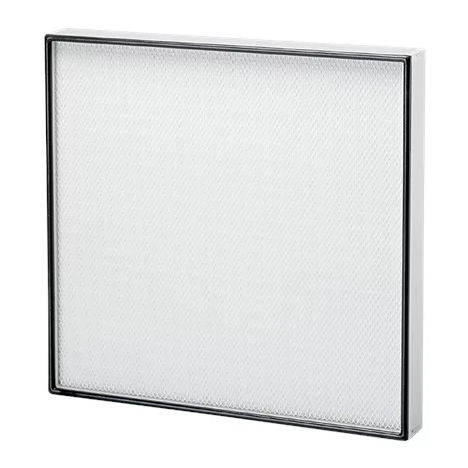

HEPA filter Megalam ProSafe

airfor clean roomssilicone

Overview
The Megalam ProSafe HEPA (H14) and ULPA (U15–U17) panel filters are designed for turbulent and laminar airflow applications in high-tech cleanrooms, laminar flow benches and clean air devices. Optimized for Life Science and Food & Beverage environments with glass-fiber media to ensure low initial pressure drop and extended service life. Compliant with ProSafe requirements and individually scan-tested to ISO 29463.

Key features

• ProSafe certified for Pharma, Life Science and Food & Beverage processes
• 100% individually scan-tested according to ISO 29463
• Chemically resistant to common decontamination and cleaning agents
• Microbially inert components per ISO 846
• Tested for food contact according to EC 1935:2004
• Hygienic product compliance: VDI 6022 and ISO 846
• Free of bisphenol-A, phthalates and formaldehyde
• Manufactured and packed in a controlled environment; PE-film packaging

Available variants (selection)
Item Type | Filter Class EN1822 | Width (mm) | Height (mm) | Depth (mm) | Airflow (m3/h) | Pressure drop Initial (Pa)
MD14-2G10-305x305x66-1PU | H14 | 305 | 305 | 66 | 150 | 155
MD14-2G10-305x610x66-1PU | H14 | 305 | 610 | 66 | 300 | 150
MD14-2G10-457x457x66-1PU | H14 | 457 | 457 | 66 | 340 | 150
MD14-2G10-610x610x66-1PU | H14 | 610 | 610 | 66 | 600 | 140
MD14-2G10-1220x610x66-1PU | H14 | 1220 | 610 | 66 | 1200 | 140
MD15-2G10-305x305x66-1PU | U15 | 305 | 305 | 66 | 150 | 165
MD15-2G10-610x610x66-1PU | U15 | 610 | 610 | 66 | 605 | 145
MX14-2G10-305x305x90-1PU | H14 | 305 | 305 | 90 | 151 | 110
MX14-2G10-610x610x90-1PU | H14 | 610 | 610 | 90 | 605 | 95
MG14-2G10-305x305x110-1PU | H14 | 305 | 305 | 110 | 151 | 80

Technical specifications

• Application: HEPA/ULPA panel filters for cleanrooms, laminar flow benches and clean air devices
• Filter frame: Extruded anodized aluminium
• Media: Glass fiber
• Max temperature: 70 °C
• Relative humidity: 100%
• Recommended final pressure drop: 2× initial pressure drop
• Separator: Hot-melt
• Gasket options: Silicone gel or seamless PU foamed gasket
• Upstream/downstream grid: Expanded metal, painted (RAL 9016/9010)
• Sealant: Polyurethane
• Max final pressure drop: MD: 500 Pa, MX: 600 Pa, MG: 800 Pa
• Testing & packaging: Individually scan-tested to ISO 29463 with protocol; packed in PE-film; ProSafe compliance
