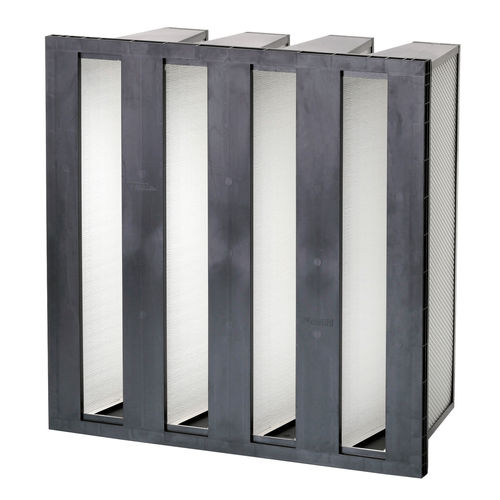

Pleated filter cartridge Absolute™ VGHF

HEPAmicro glass fiberair

Overview
Compact HEPA filter with header frame for air handling units (AHU) requiring very high airflow and low pressure drop. ABS header frame (25 mm) with V‑shaped pleat pack provides high dust holding capacity with low pressure drop and reduced weight. Available in EN1822 classes (E11, H13, H14) and individually scan‑tested according to ISO 29463.

Key features

• High airflow capability (up to 2.3 m/s face velocity)
• Compact HEPA filter with ABS header frame, 25 mm
• V‑shaped pleat pack for increased media area
• Completely incinerable construction
• Enables HEPA upgrade of AHUs
• Available in EN1822 classes E11, H13, H14

Available items (selection)
Item Type | Filter Class EN1822 | Width (mm) | Height (mm) | Depth (mm) | Airflow (m3/h) | Pressure drop Initial (Pa)
VGHF11-592x287x292-0P | E11 | 592 | 287 | 292 | 1350 | 165
VGHF11-592x490x292-0P | E11 | 592 | 490 | 292 | 2450 | 165
VGHF11-592x592x292-0P | E11 | 592 | 592 | 292 | 3000 | 165
VGHF13-592x287x292-0P | H13 | 592 | 287 | 292 | 1350 | 250
VGHF13-592x490x292-0P | H13 | 592 | 490 | 292 | 2450 | 250
VGHF13-592x592x292-0P | H13 | 592 | 592 | 292 | 3000 | 250
VGHF14-592x287x292-0P | H14 | 592 | 287 | 292 | 1300 | 300
VGHF14-592x490x292-0P | H14 | 592 | 490 | 292 | 2450 | 300
VGHF14-592x592x292-0P | H14 | 592 | 592 | 292 | 3000 | 300

Product details

• Application: EPA/HEPA final filtration in air conditioning systems and industrial processes
• Filter frame: ABS header frame, 25 mm
• Media: Glass fiber
• Max temperature: 70°C
• Relative humidity: 100%
• Recommended final pressure drop: 2× initial pressure drop
• Separator: Hot‑melt
• Gasket: Polyurethane, endless foamed, flat gasket
• Sealant: Polyurethane
• Max. airflow: can be calculated on request
• Max. final pressure drop: 500 Pa
• Comment: All filters auto‑tested according to ISO 29463 and individually packed in PE‑foil. Other versions on request
