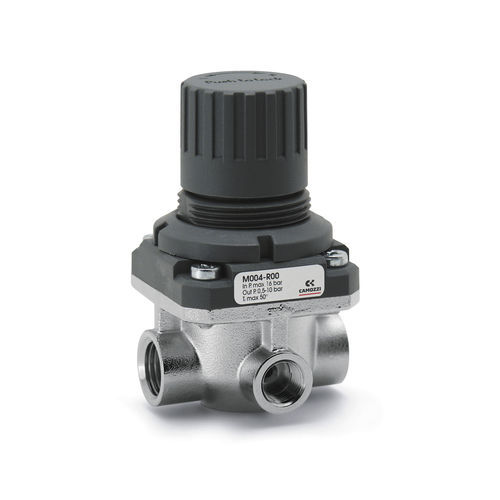

Air pressure regulator Series M

in-line

Ports G1/8, G1/4 Series M pressure regulator is available with G1/8 and G1/4 ports. Its design incorporates a diaphragm and relieving so as to allow decremental adjustments as well. Microregulators are available with different regulation types: non-relieving, very sensitive self-relieving (through a light air leak) and VS (valve with fast draining). The VS version is used when a regulator should be inserted between the valve and cylinder, or capacity, without any negative influence on the exhaust. Construction - diaphragm type Materials - body: non nickel-plated brass spring: stainless steel seals: diaphragm in EPDM (H versions only) Ports - G1/8 - G1/4 Weight - Kg 0.235 Pressure gauge ports - G1/8 Mounting - in-line or panel mounting (in any position) Working temperature - 10°C ÷ 50°C with water Inlet pressure - 0 ÷ 16 bar Outlet pressure - 0.5 ÷ 10 bar Nominal flow - air: Qn 480 (Nl/min) water: Kv 0.42 (N3h) Secondary pressure (relieving) - with relieving (standard) without relieving Fluid - compressed air
